Blind Hole Circuit Board Support JX-GBS2,JX-GBS4,JX-GBS5

Home - Products - Blind Rivets Nuts & Stud Fasteners for Sheet Metal - other - Blind Hole Circuit Board Support JX-GBS2,JX-GBS4,JX-GBS5
68b66e7767046

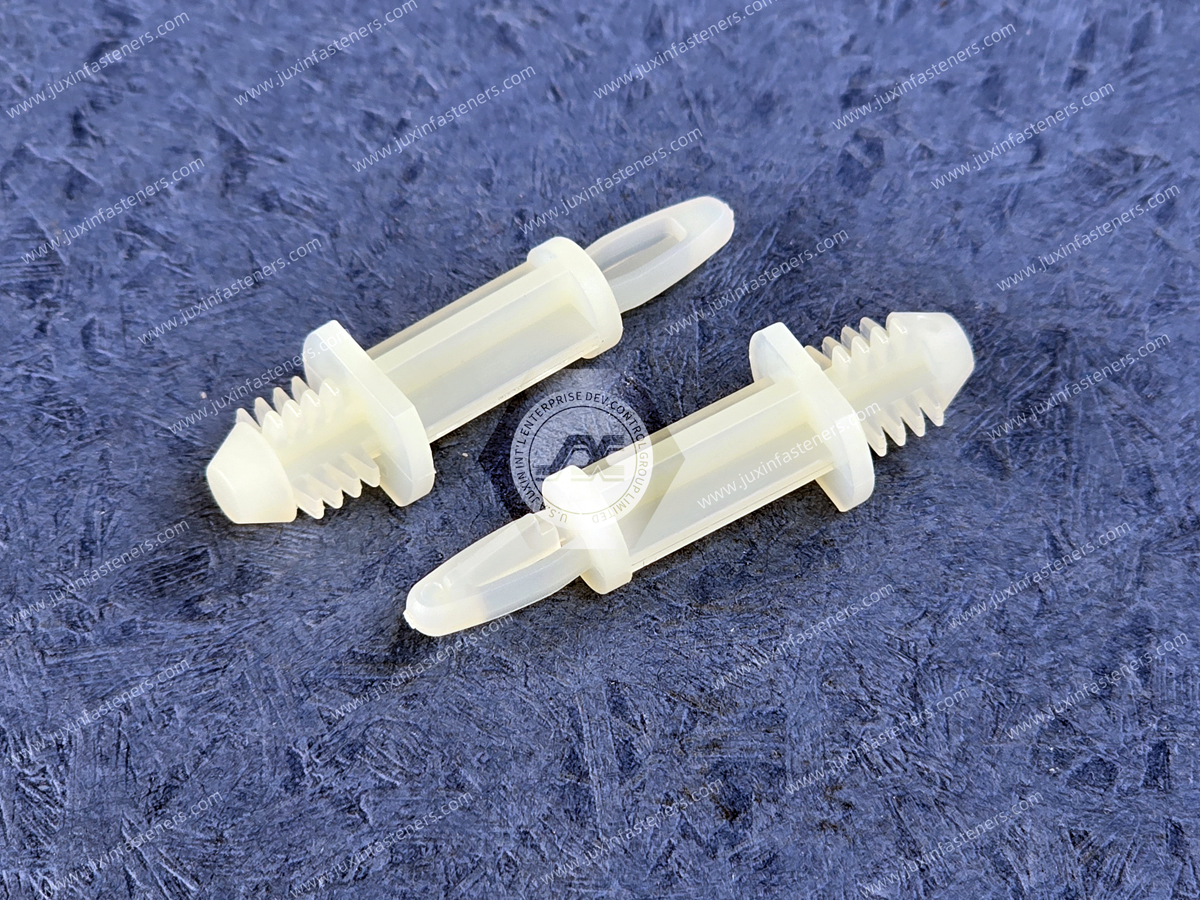

Blind Hole Circuit Board Support JX-GBS2,JX-GBS4,JX-GBS5

Name:JX-GBS2,JX-GSB4,JX-GBS5  Blind Hole Circuit Board Support

Material: PA66 UL94V2 (GMS-01); PA66 UL94V0 (GMS-02)

(1)JX-GBS2

Top Hole: 4.0±0.08mm

Panel Thickness: 1.57mm

Bottom Hole: 7.92±0.08mm

Panel Thickness: 6.4mm.

(2)JX-GBS4

Top Hole: 4.0±0.08mm

Panel Thickness: 1.57mm

Bottom Hole: 6.35±0.08mm

Panel Thickness: 6.4mm

(3）JX-GBS5

Top Hole: 4.0±0.08mm

Panel Thickness: 1.57mm

Bottom Hole: 6.35±0.08mm

Panel Thickness: 6.4mm

Spacers for snap or self-adhesive mounting. The head of the spacer has different locking and removal designs.

Furthermore, we offer different hole diameters, lengths, and plate thicknesses.

Circuit board support is suitable for connecting PCBs.

Available for various hole sizes and panel thicknesses.

Please see the table below for the types and sizes available.

This locking circuit board support is designed to be pushed into a blind hole, providing secure fastening. This item is manufactured with material rated UL94 V-2.


Inquire Now Next Products

Product Specification

Blind Hole Circuit Board Support

PCB Support - Spacer - Locking/Non-Locking Bajonet, Locking Arrowhead with Fir Tree Mount

Blind hole circuit board support is a component that can be used to fasten circuit boards into blind holes. They are a popular choice in the electronics industry and can be used for panel mounting. Blind hole circuit board supports are available from several suppliers, including:

Offers a range of blind hole circuit board support products, including locking circuit board supports and dual locking spacers

Sells BS8 PC Blind Hole Mount Circuit Board Supports in a variety of head hole diameters and head panel thicknesses

Offers a range of PCB support options, including locking and non-locking bayonet and locking arrowhead with fir tree mount

Sells blind hole circuit board support posts in nylon materials and metric measurements

Blind holes connect the outermost layer of a circuit board to one or more inner layers but do not extend through the entire board. They are commonly used in multilayer PCBs to connect external and internal layers.


ProductPictures

Blind Hole Circuit Board Support JX-GBS2,JX-GBS4,JX-GBS5
