Metric Medium-Strength Steel Nylon-Insert Flange Locknuts

Home - Products - Industrial Nuts— lock, flange, wheel, structural & specialty assemblies - Lock Nuts - Metric Medium-Strength Steel Nylon-Insert Flange Locknuts
641285fca61db

Metric Medium-Strength Steel Nylon-Insert Flange Locknuts

Material: Carbon steel

Standard: ISO 12125, ISO 7043, NF E 25-413, ASME B 18.16.6, NF E 25-507, NF E 25-506, GB /T 6183.2, Q 339, GB /T 6183.2, DIN EN 1666

Inquire Now Next Products

Product Specification

Name: Metric Medium-Strength Steel Nylon-Insert Flange Locknuts—Class 8

Material: Carbon steel

Class: 8, 10 Class

Color:  ROHS Blue Zinc

Size: M5, M6, M8, M10, M12, M14, M16, M20


A nylon insert firmly grips threads to resist loosening and a flange distributes the load over a large area. These nuts are reusable, but their holding power lessens with each use. Suitable for fastening most machinery and equipment, they're comparable in strength to Class 8.8 bolts. Height includes the flange. Zinc-plated steel locknuts are corrosion-resistant in wet environments. Black corrosion-resistant-coated steel nuts are more corrosion-resistant in wet environments than zinc-plated steel nuts. They're also known as black luster nuts.


Size Can also be According to the Customer's requirement please check the detailed specification sheet details PDF, CAD, 139-140 Page See more product details.

ProductPackaging

Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

ProductPictures

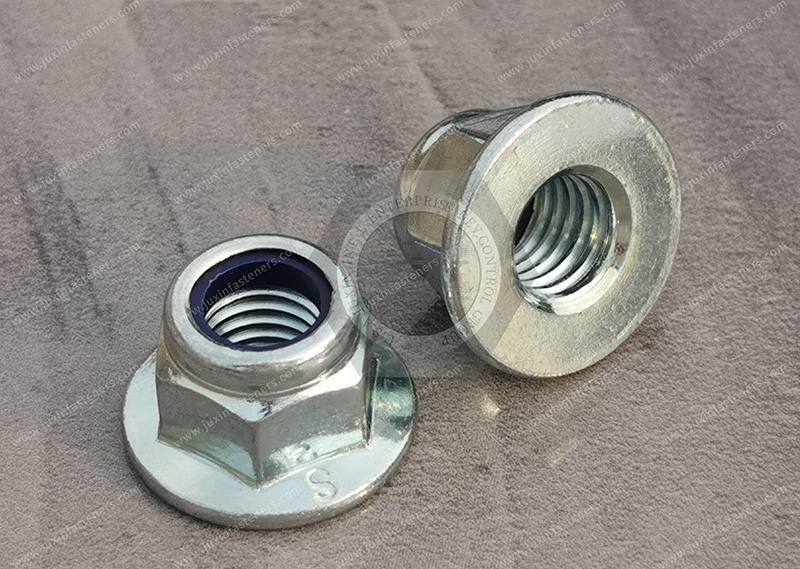

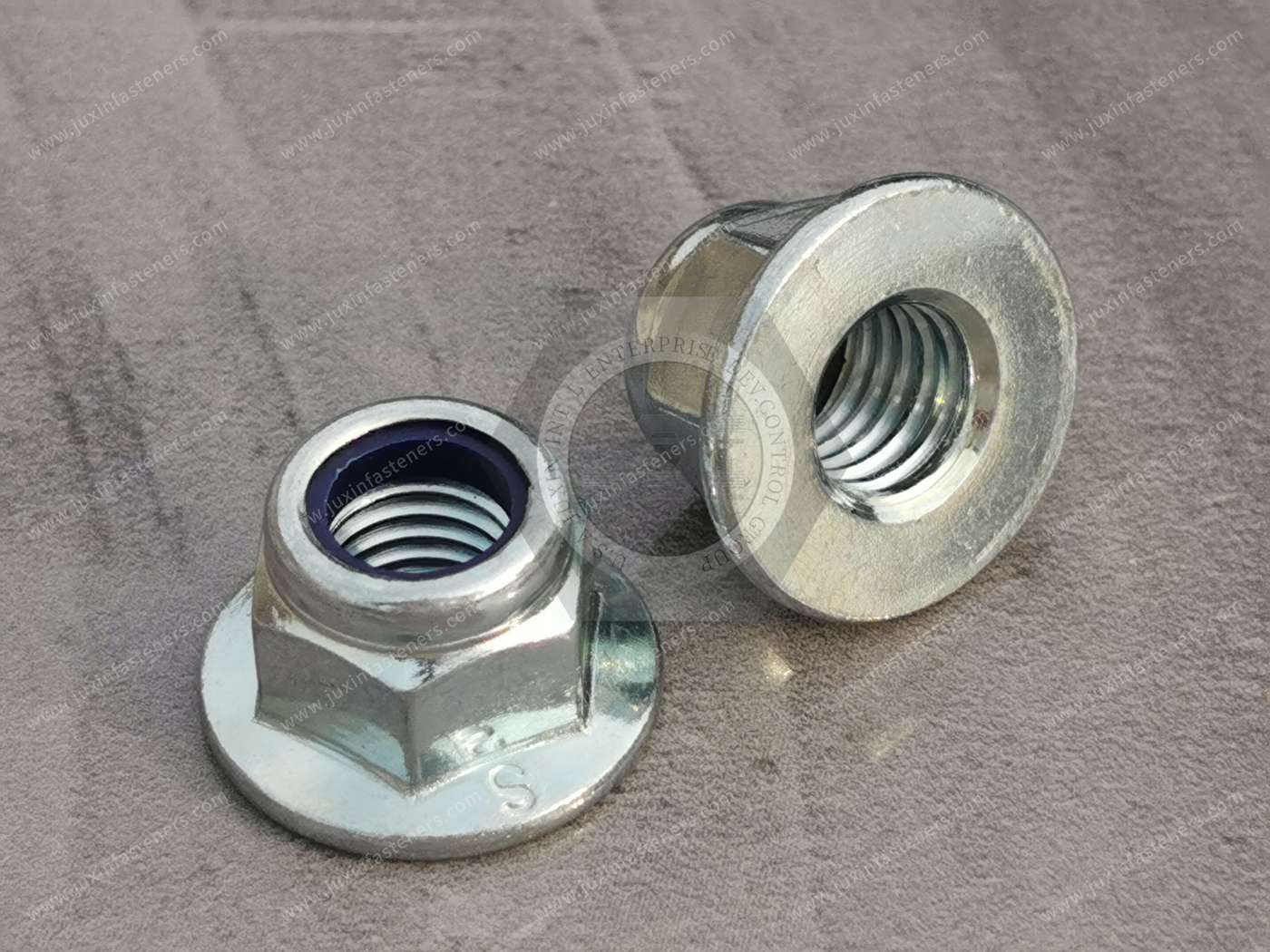

Metric Medium-Strength Steel Nylon-Insert Flange Locknuts


Metric Medium-Strength Steel Nylon-Insert Flange Locknuts
