Thread knurled inserts nuts for self-forming insertion JX-FXAF3

Home - Products - Threaded Inserts Nut Fasteners for Plastic - Inserts for Plastic - Thread knurled inserts nuts for self-forming insertion JX-FXAF3
642e6ae6c78e5

Thread knurled inserts nuts for self-forming insertion JX-FXAF3

Brass or brass alloy: H63; H65; H68; H70; H90, etc.

Inquire Now Next Products

Product Specification

1. Universal thread insert for thermoset and thermoplastic components

2. High-strength threads by expansion anchoring

3. Quick, cost-effective installation

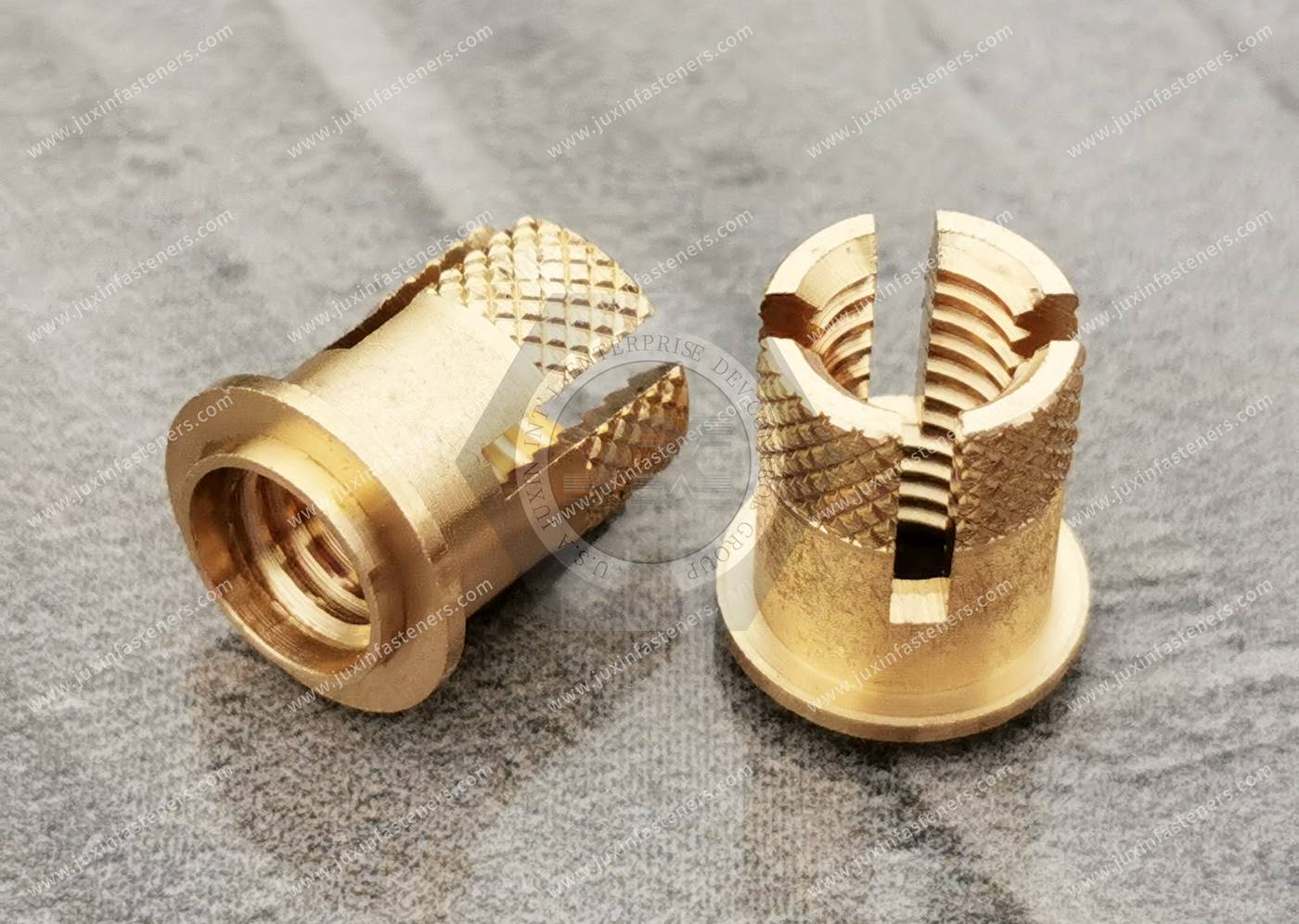

The insert nuts knurled thread insert consists of a cross-slotted basic body with an internal thread, which has an external diamond knurl, and an expanding plate. When the thread insert is installed in the mounting hole, the diamond knurl part is expanded by the expanding plate which is pressed down. As a result, it is anchored in the wall of the hole. The insert nuts knurled had been specially developed for use in blind holes.Material: brass CuZn38Pb2 (compliant with EU 2000/53) / brass CuZn39Pb3.

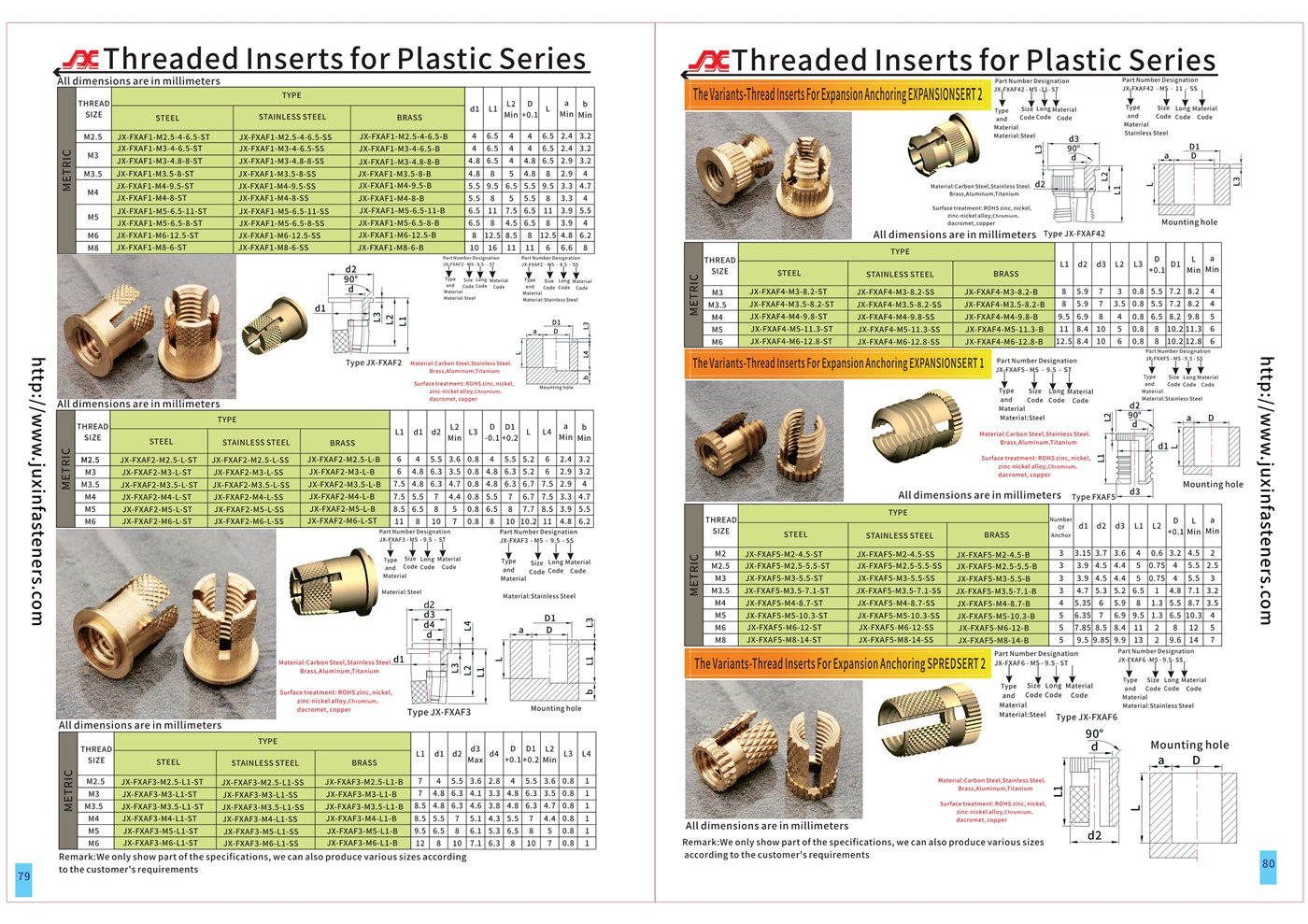

Size Can also be According to Customer's requirement and please check detailed specification sheet PDF, CAD, See more product details, PDF 79-80Page

ProductPackaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

ProductPictures

Thread knurled inserts nuts for self-forming insertion JX-FXAF3


Thread knurled inserts nuts for self-forming insertion JX-FXAF3
