1. No tapping
2. Quick, cost-effective installation
3. Chipless installation in smooth mounting holes
4. High-strength threads also in light metals
5. High-strength threads in thermoplastic and thermoset components** after demolding the components
6. Suited for one-sided accessibility of the installation point
7. For screw joints reusable as often as required
8. For installation on finished surfaces

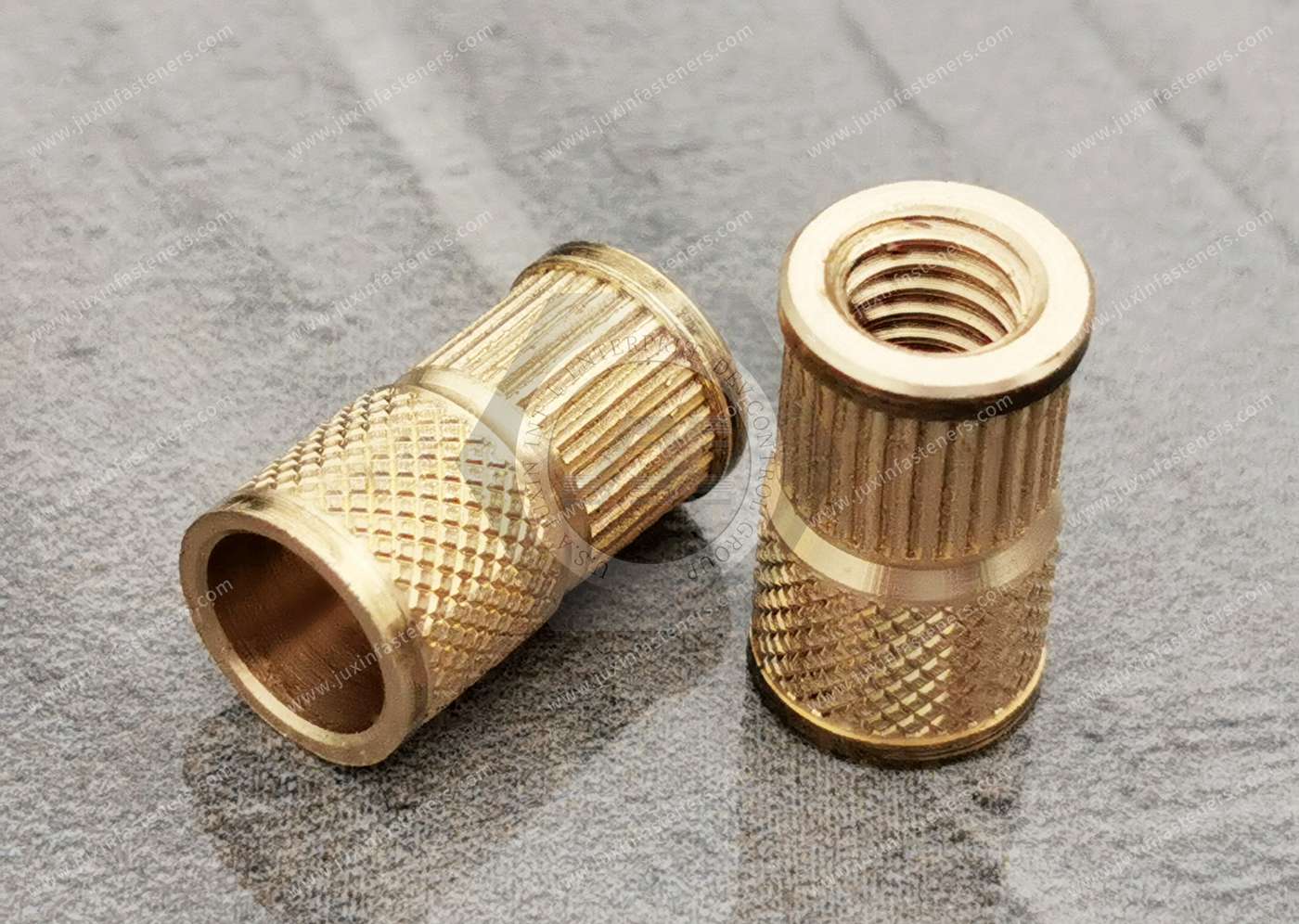

The insert nut knurled type is spun onto the rotating threaded mandrel of the installation tool and introduced into the mounting hole. The hole can be performed or machined with common drills as a blind or through-hole. Through the axial pulling motion of the threaded mandrel in the installation tool, the insert nuts knurled shears at the predetermined breaking point between the anchoring sleeve and the threaded bush. The threaded bush is pulled into the anchoring sleeve and expanded. Meanwhile, the diamond knurl of the anchoring sleeve is pressed into the wall of the hole. The thread insert is now anchored and locked against screwing and pull-out.Material: brass CuZn38Pb2 (compliant with EU 2000/53) / brass CuZn39Pb3 or steel 1.0718
Size Can also be According to Customer's requirement and please check detailed specification sheet PDF, CAD, See more product details, PDF 81-82Page
