Thread inserts nuts knurled for expansion anchoring JX-FXAF6

Brass or brass alloy: H63; H65; H68; H70; H90, etc.

Inquire Now Next Products

Product Specification

1. For thermoset parts

2. Fast installation without special tools

3. Retaining flange and diamond knurl ensure a high degree of locking against screwing and tensile load

4. Screw-locking


The insert nut knurled is pressed flush into the mounting hole until the retaining flange has been completely anchored in the plastic material. In that process, the slotted area is compressed. The radially locked insert nut knurled is expanded by the screw so that the diamond knurl penetrates the plastic material and ensures the interference fit of the thread insert. In this process, the screw is also locked. For the additional expansion force, the tightening torque must be increased by 10 %.Material: brass CuZn38Pb2 (compliant with EU 2000/53) / brass CuZn39Pb3.


Size Can also be According to Customer's requirement and please check detailed specification sheet PDF, CAD, See more product details, PDF 79-80Page

ProductPackaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

ProductPictures

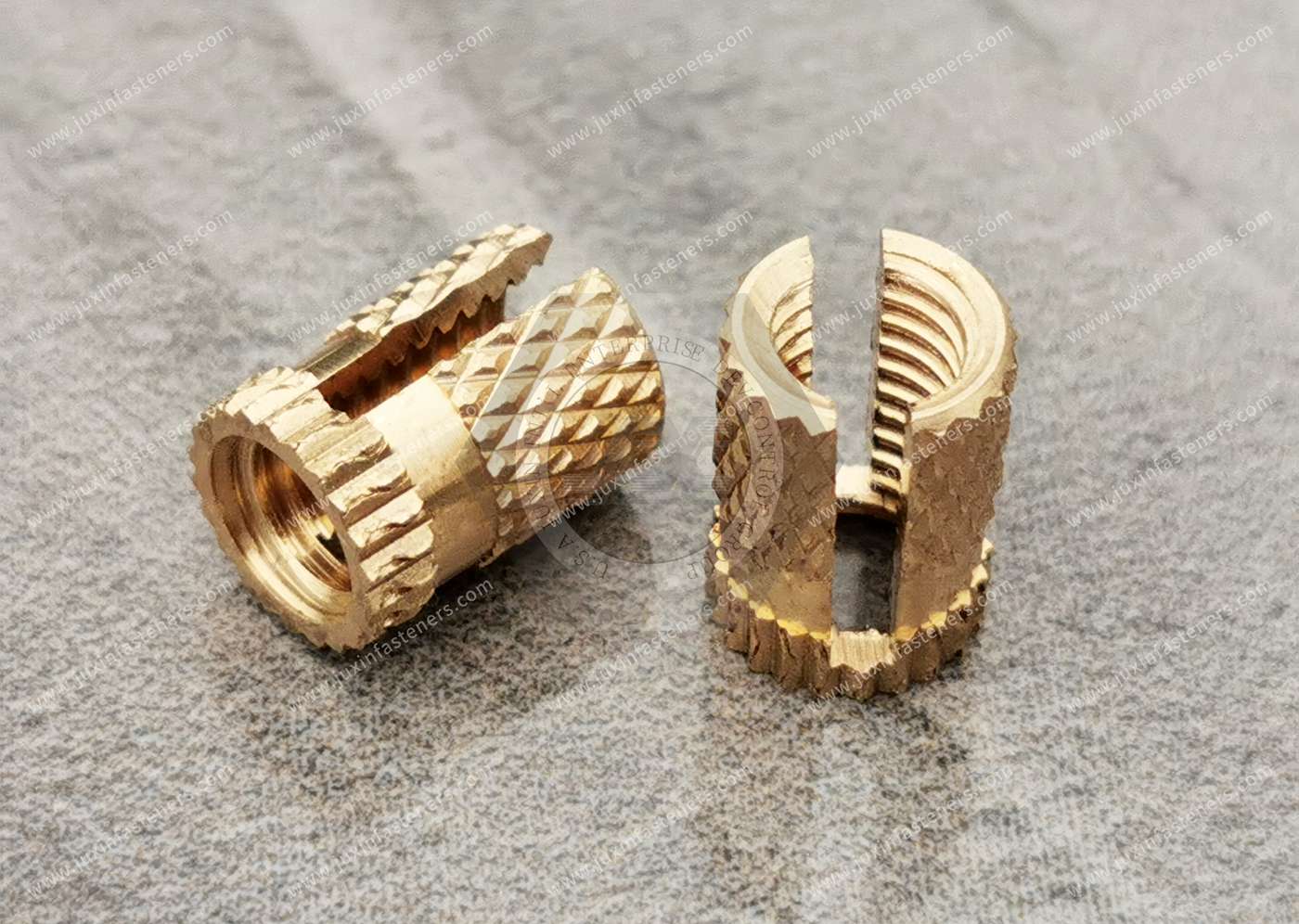

Thread inserts nuts knurled for expansion anchoring JX-FXAF6


Thread inserts nuts knurled for expansion anchoring JX-FXAF6
