Thread inserts knurled nuts for expansion anchoring JX-FXAF4

Brass or brass alloy: H63; H65; H68; H70; H90, etc.

Inquire Now Next Products

Product Specification

1. For reactive resins, PUR, elastomers, integral hard foams as well as for wood composite materials

2. Wear-resistant threads

3. Quick, cost-effective installation


The thread insert nuts knurled consist of a body with an internal thread, which has knurls and undercuts on the circumferential surface. Inside the body, there is an expanding plate that is pressed down when the thread insert is installed in the mounting hole. Upon installation, the slotted bottom part of the insert nut is expanded and its cutting rings are anchored in the wall of the mounting hole. The thread insert is thus reliably locked against pull-out and screwing. The insert nuts knurled had been specially developed for use in blind holes.


Size Can also be According to Customer's requirement and please check detailed specification sheet PDF, CAD, See more product details, PDF 79-80Page

ProductPackaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

ProductPictures

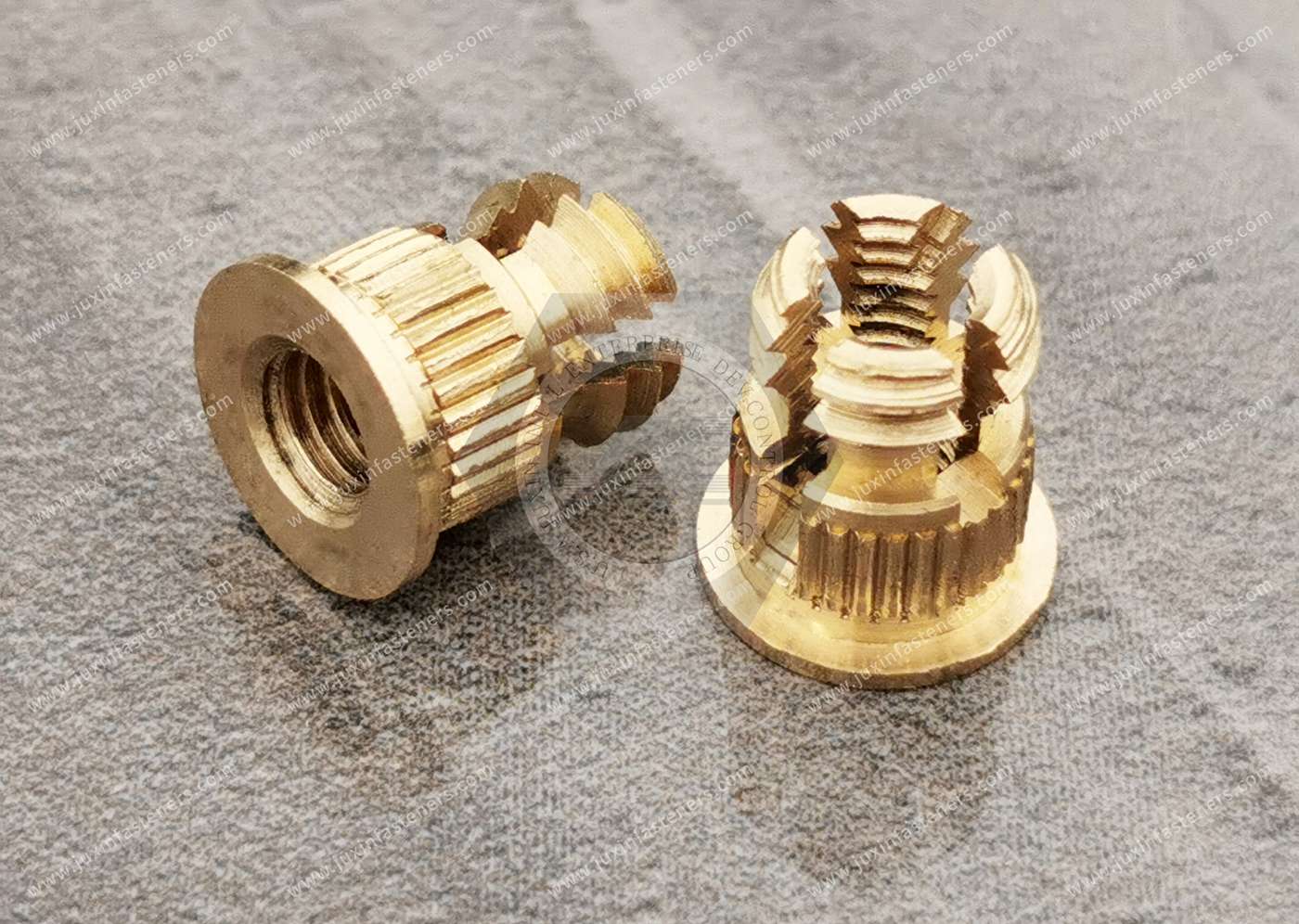

Thread inserts knurled nuts for expansion anchoring JX-FXAF4


Thread inserts knurled nuts for expansion anchoring JX-FXAF4
