The variants – thread inserts for ultrasonic installation JX-TUIS, JX-TUIE, JX-TUID

Steel: C45(K1045), C46(K1046), C20, etc.Iron: 1213, 1214, 1215, etc.

Inquire Now Next Products

Product Specification

1. Suited for thermoplastic components

2. Especially designed for ultrasonic installation

3. Screw-locked and low-stress anchoring

4. High pull-out values the n-Type insert can be installed from both sides. Advantages of automatic feed since no directional orientation is required.


The thread insert can be embedded using common ultrasonic welders. During welding, the plastic material plasticizes in the welding area due to the ultrasonic vibrations and flows into the undercuts of the thread insert. During cooling, a low-stress interference fit is achieved. Thermal installation or inductive insertion is preferable.


Size Can also be According to Customer's requirement and please check detailed specification sheet PDF, CAD, See more product details, PDF 75-76Page

ProductPackaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

ProductPictures

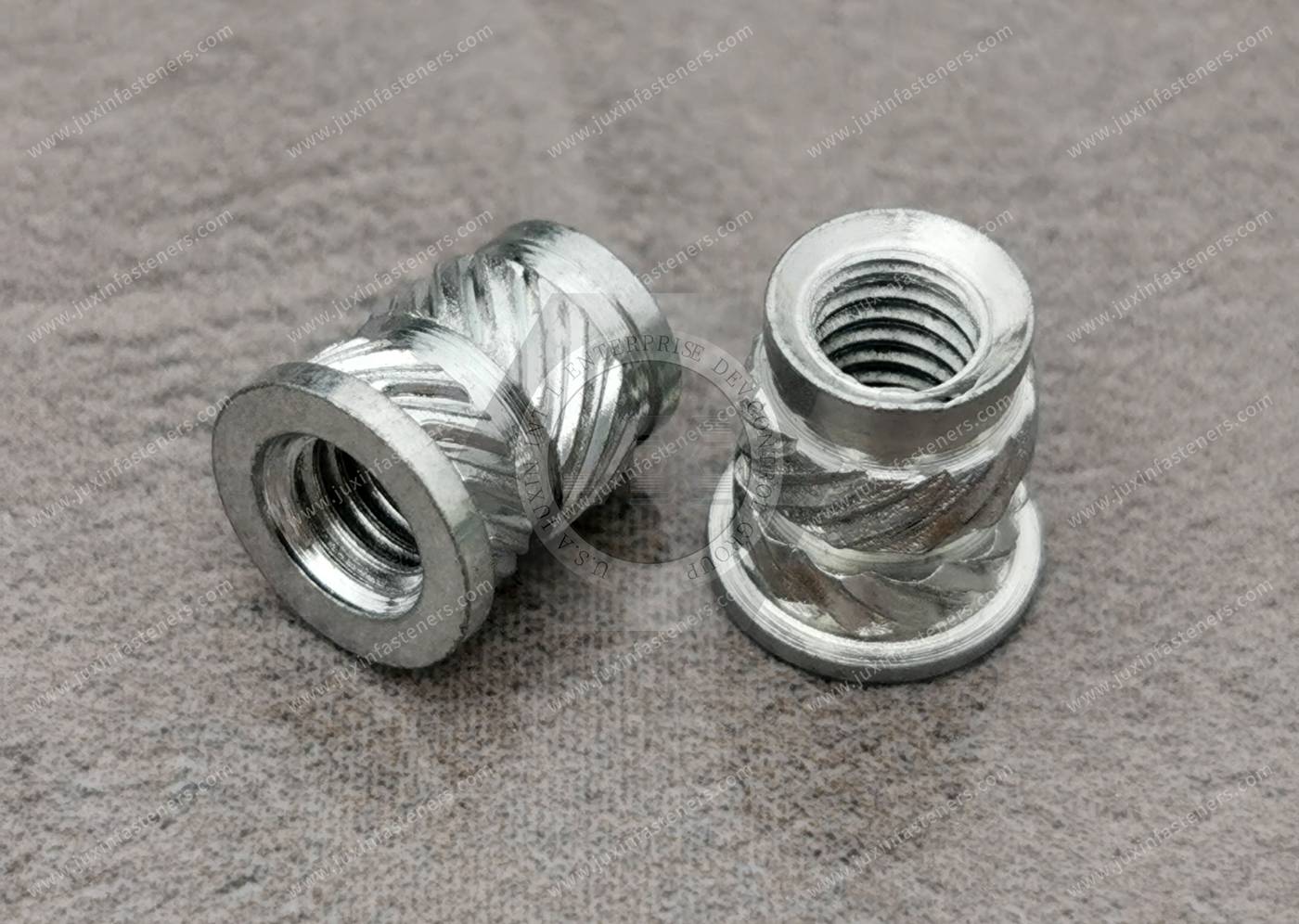

The variants – thread inserts for ultrasonic installation JX-TUIS, JX-TUIE, JX-TUID


The variants – thread inserts for ultrasonic installation JX-TUIS, JX-TUIE, JX-TUID
