The variants – thread inserts for thermal installation, tapping insertion, and cold insertion inner hexagon JX-ZSFQ

Brass or brass alloy: H63; H65; H68; H70; H90, etc.

Inquire Now Next Products

Product Specification

1. Well-proven 8° taper angle

2. Self-centring

3. Large contact surface for the plastic

4. Flexible: thermal installation, tapping insertion, or cold insertion

5. Short installation times

6. Milled external contour (low tolerances)

7. Special designs with sealing rings realizable


The insert is a conical universal thread insert for thermoplastics (thermal installation, tapping insertion, cold insertion). With its special external contour (characterized by a fine, self-tapping thread with an asymmetric flank profile), the insert is a threaded insert that can be used for the complete range of well-established installation methods. Our Application Engineering Department helps you to find the perfect installation method for your application (in terms of installation effort and interference fit values).


Size Can also be According to Customer's requirement and please check detailed specification sheet PDF, CAD, See more product details, PDF 77-78Page

ProductPackaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

ProductPictures

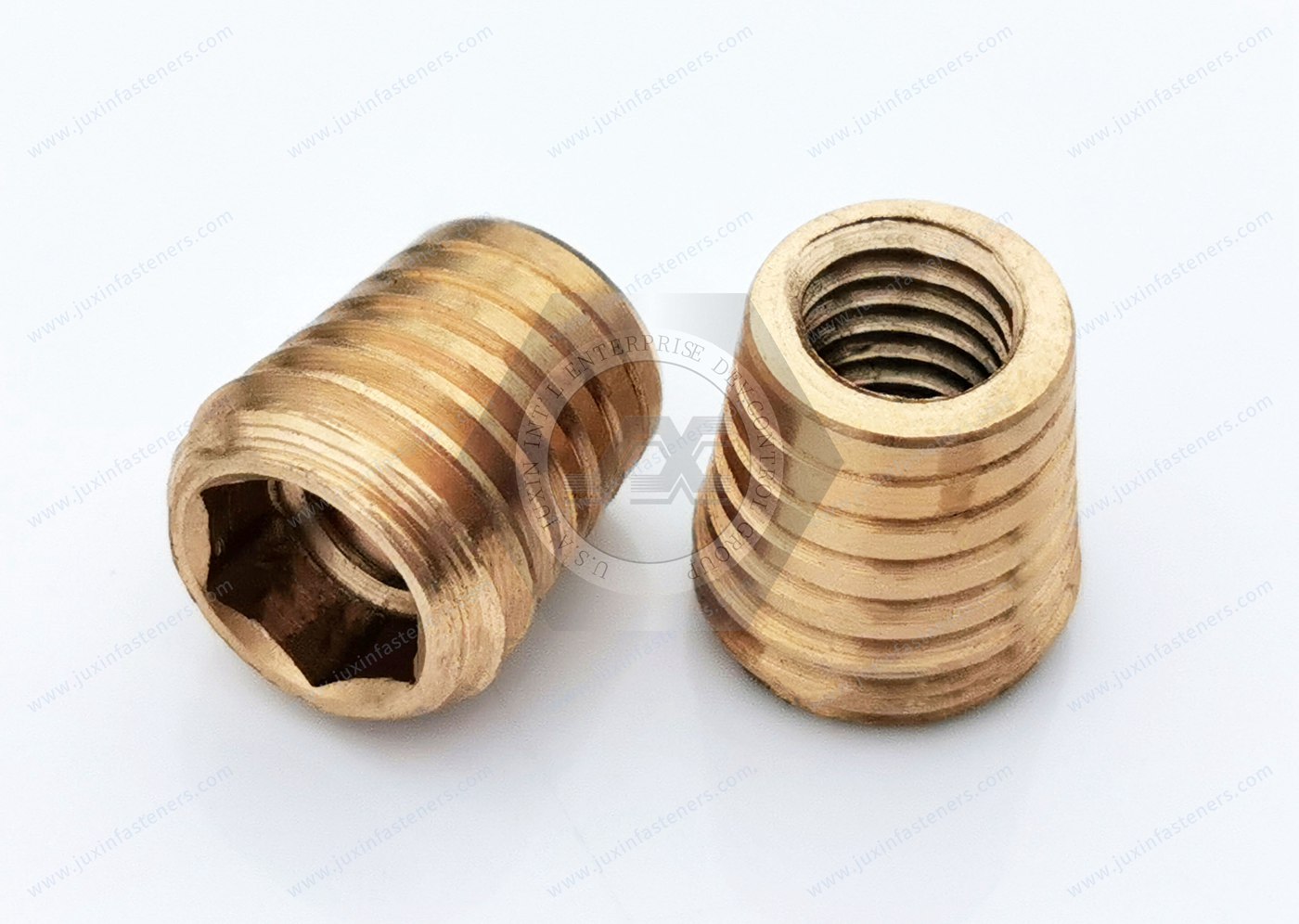

The variants – thread inserts for thermal installation, tapping insertion, and cold insertion inner hexagon JX-ZSFQ


The variants – thread inserts for thermal installation, tapping insertion, and cold insertion inner hexagon JX-ZSFQ
