The variants – thread inserts nuts for self-forming insertion JX-FZSF

Home - Products - Threaded Inserts Nut Fasteners for Plastic - Inserts for Plastic - The variants – thread inserts nuts for self-forming insertion JX-FZSF
642e69464695d

The variants – thread inserts nuts for self-forming insertion JX-FZSF

Brass or brass alloy: H63; H65; H68; H70; H90, etc.

Inquire Now Next Products

Product Specification

1. Suited for thermoplastic components

2. High-strength and torsion-resistant threads

3. Chipless installation

4. Special version available with external left-hand thread for improved reverse locking


The insert nuts consist of a conical basic body (8° overall taper) with an internal thread, a shaped hexagon, and a special external thread. The profile of the external thread has an extremely small flank angle and expands asymmetrically toward the thread root. The driving torques for the installation are thus reduced. A high interference fit is achieved with an ideal distribution of load. Since no cutting slot is required, there are no chips because the thread inserts forms into the plastic. For special requirements, we offer a version with flange. The flange version has a large contact surface and thus reduces the surface pressure. The threaded bush is plugged on and screwed in with a rotating spindle.Technical data material: brass CuZn38Pb2 (compliant with EU 2000/53) / brass CuZn39Pb3 or steel 1.0718 11SMnPb30 galvanized, chromated.


Size Can also be According to Customer's requirement and please check detailed specification sheet PDF, CAD, See more product details, PDF 77-78Page

ProductPackaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

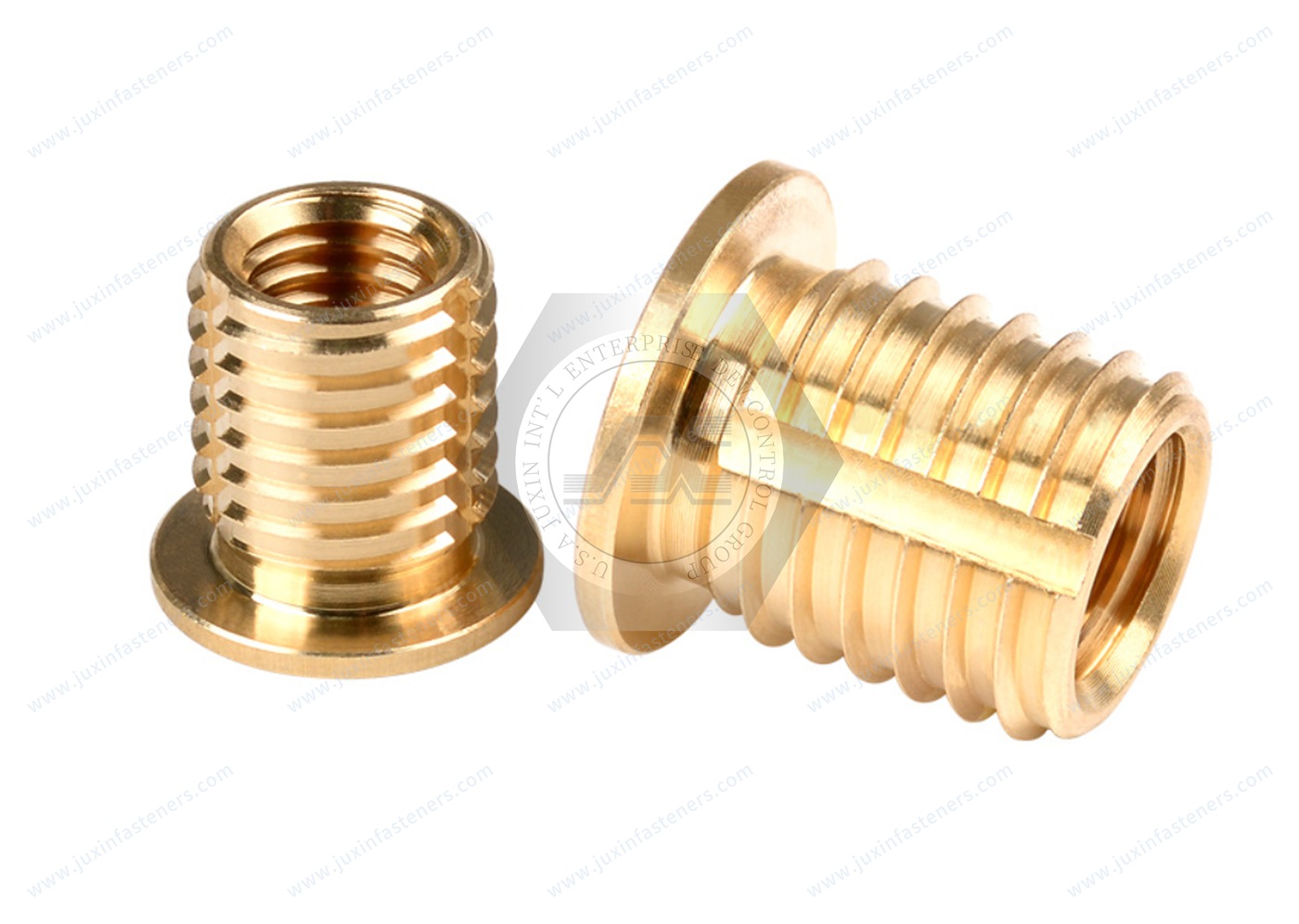

ProductPictures

The variants – thread inserts nuts for self-forming insertion JX-FZSF


The variants – thread inserts nuts for self-forming insertion JX-FZSF
