1. Universal use
2. High-strength and torsion-resistant threads
3. For brittle and ductile plastics such as unsaturated polyester resins (SMC, ZMC), polyurethane and glass-fiber reinforced thermoplastics
4. Optimum installation characteristics

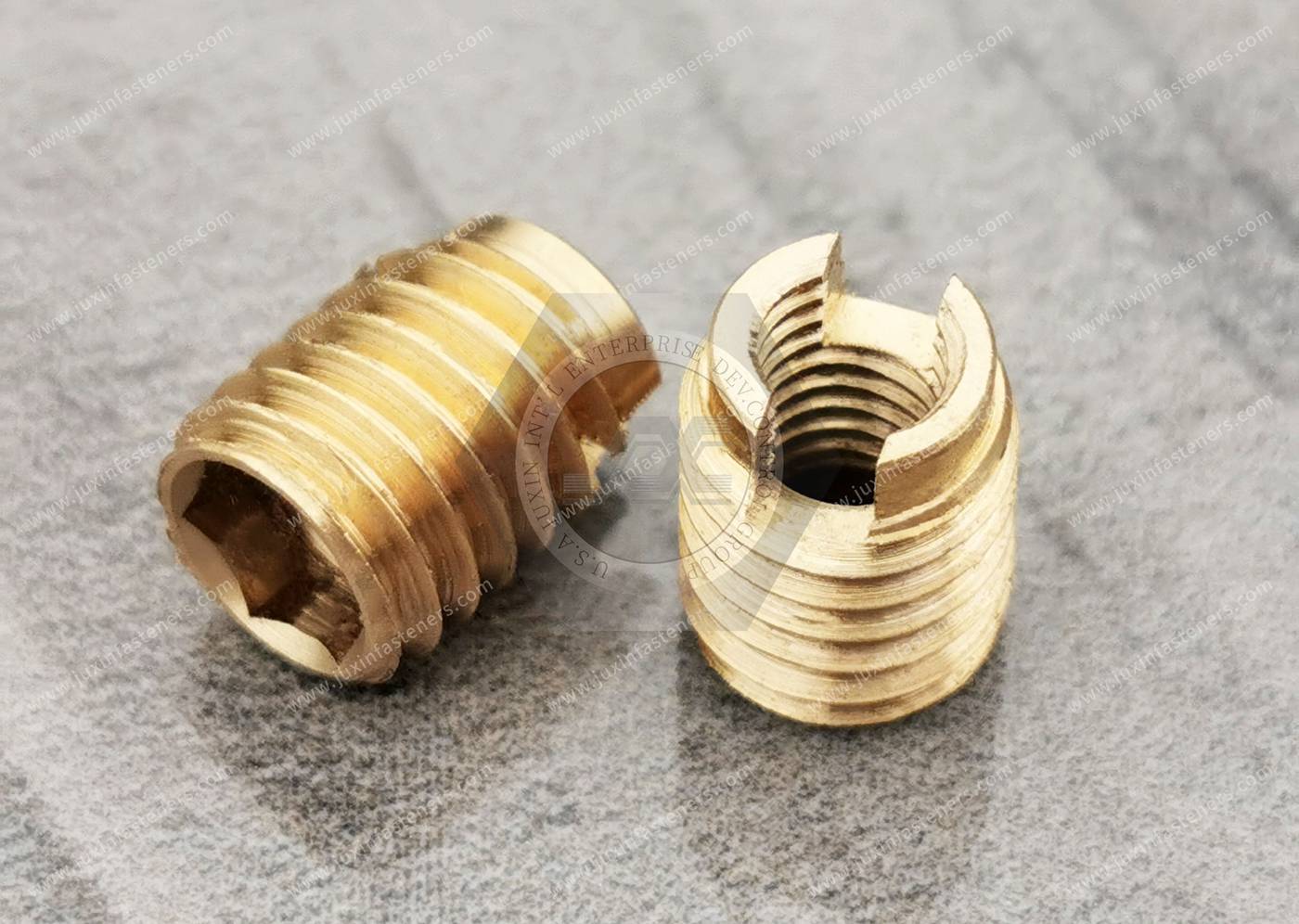

The insert nuts consist of a cylindrical basic body with an internal thread and a special external thread. The profile of the external thread has an extremely small flank angle and expands asymmetrically toward the thread root. With the special geometry of the flank angles, the radial tension is minimized. The installation with low driving torques is therefore optimized. A high interference fit is achieved with an ideal distribution of load. The bottom part of the thread insert is provided with a cutting slot. For special requirements, we offer a version with flange. The inserts are screwed in with a rotating spindle.
Technical data Material: brass CuZn38Pb2 (compliant with EU2000/53) / brass CuZn39Pb3 or steel 1.0718 11SMnPb30 galvanised, chromated.

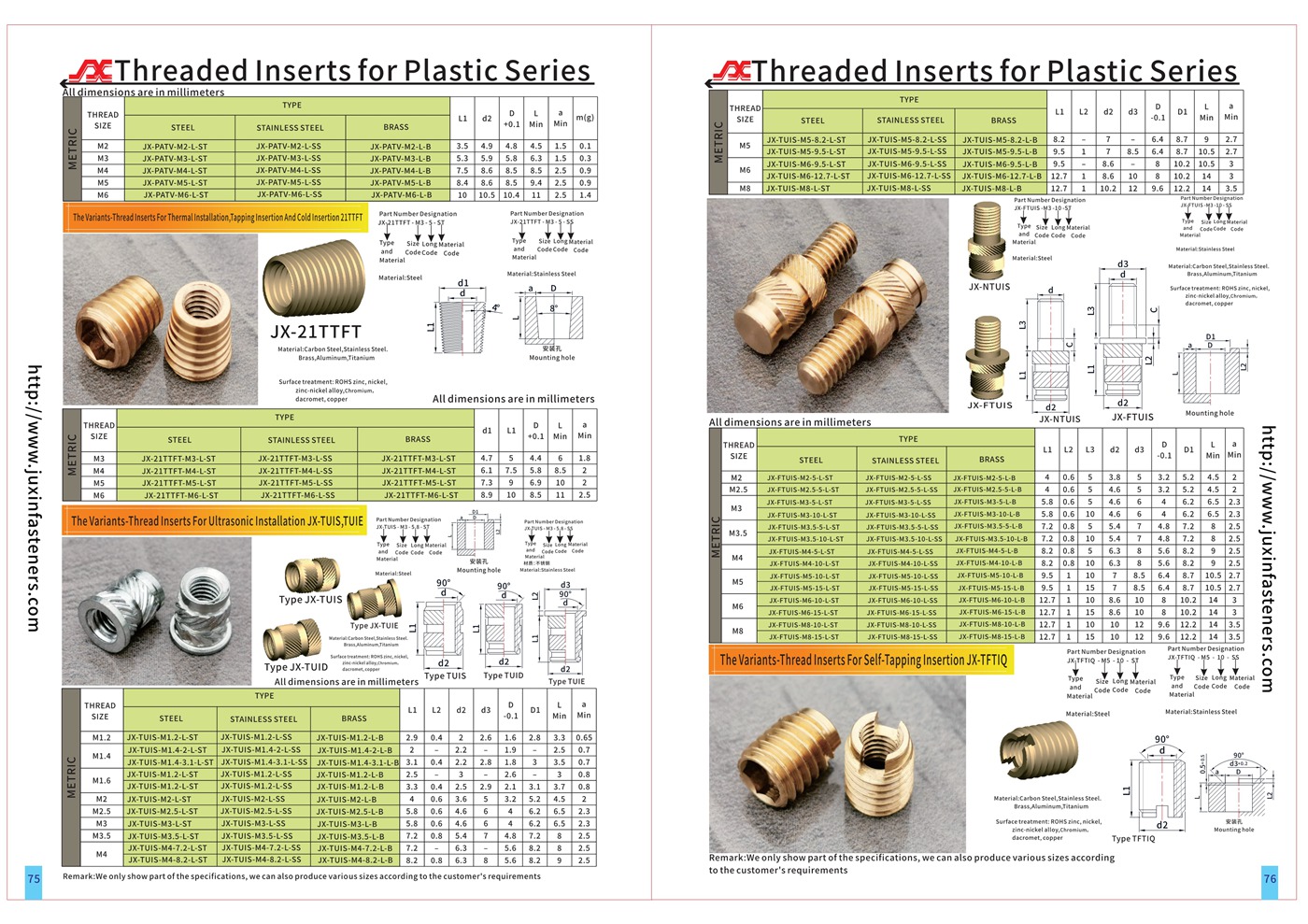

Size Can also be According to Customer's requirement and please check detailed specification sheet PDF, CAD, See more product details, PDF 75-76Page
