Self-tapping inserts with nailhead JX-STI

Home - Products - Threaded Inserts Nut Fasteners for Plastic - Inserts for Plastic - Self-tapping inserts with nailhead JX-STI
642e414d36cf3

Self-tapping inserts with nailhead JX-STI

Brass or brass alloy: H63; H65; H68; H70; H90, etc.

1. Application: Masticated inserts are self-tapping fasteners that create the ability to carry high loads on low-shear materials and provide wear-resistant, shock-resistant threaded connections. It is suitable for installation on the following materials: light alloys, cast iron, brass, bronze, non-ferrous metals, plastics, laminates, hardwoods. The nail head is used to ensure the current flow and support the simultaneous fixing of multiple parts, and the pull-through force will be greatly increased when the nail head is pressed.

2. Material: Untempered steel, surface hardened steel, galvanizing, chromium plating, brass.Tolerance: ISO2768-m

3. Margins W: light alloy ≥0.2-0.6E;  cast iron ≥0.3-0.5E;  plastic ≥0.25-0.9E.

Inquire Now Next Products

Product Specification

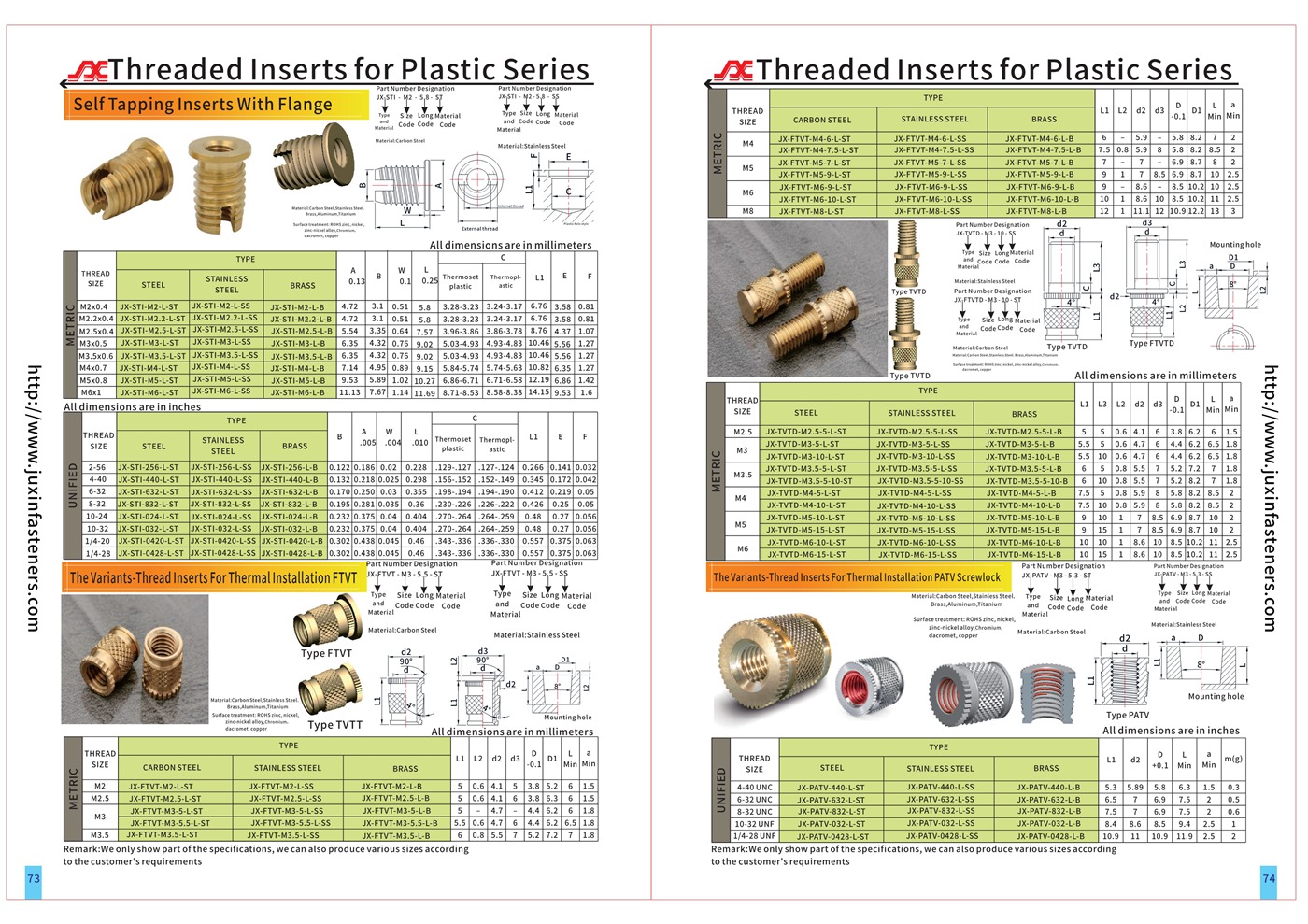

Size Can also be According to Customer's requirement and please check detailed specification sheet PDF, CAD, See more product details, PDF 73-74Page

ProductPackaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

ProductPictures

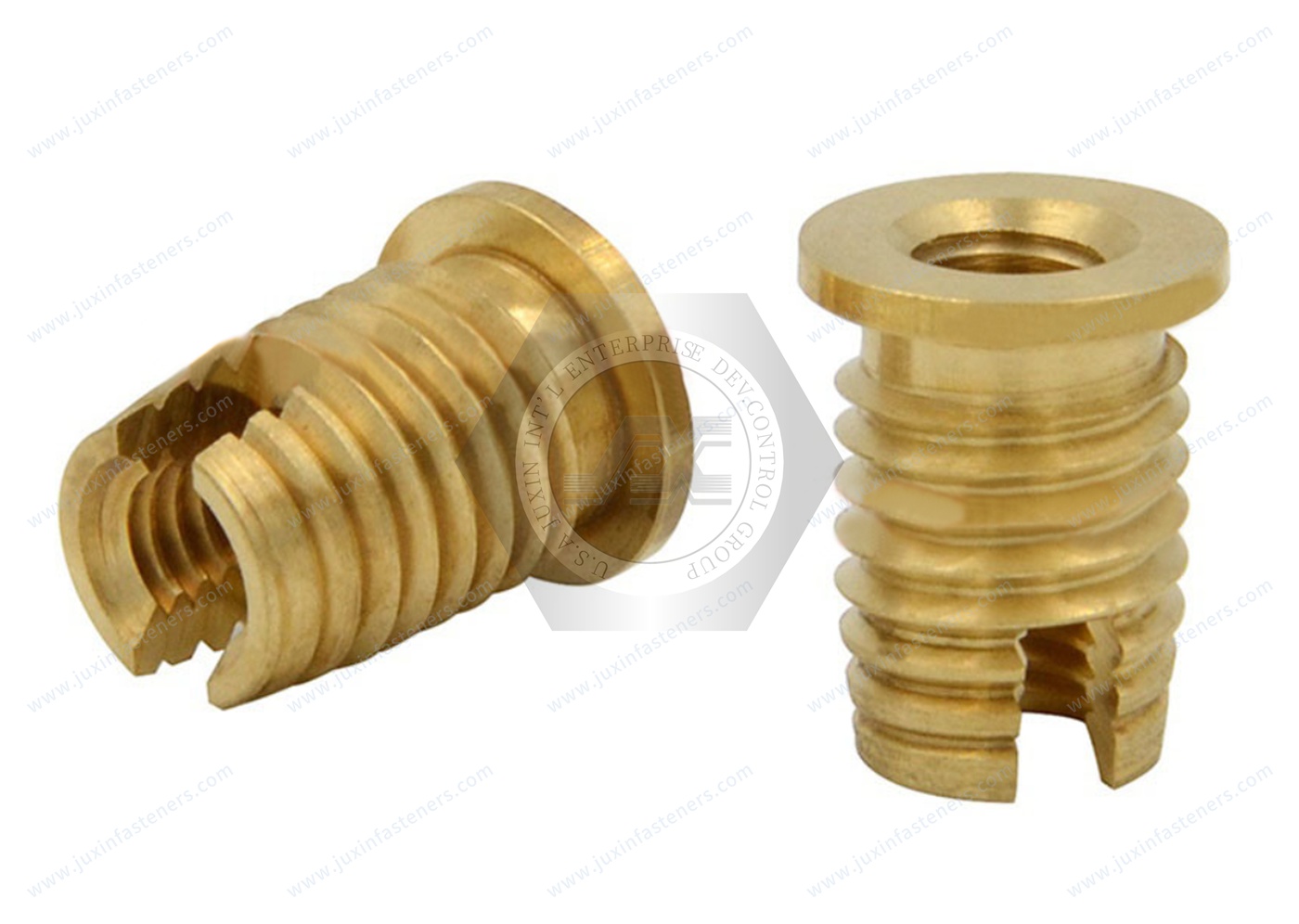

Self-tapping inserts with nailhead JX-STI


Self-tapping inserts with nailhead JX-STI
