DIN 561 Metric Hex Head Extended-Tip Set Screws&Hexagon head set screws with small hexagon and full dog point

Home - Products - Screw&Bolts — machine, hex, socket, wood, plastic, tapping & drilling screws - Hexagon Screws and Bolts - DIN 561 Metric Hex Head Extended-Tip Set Screws&Hexagon head set screws with small hexagon and full dog point

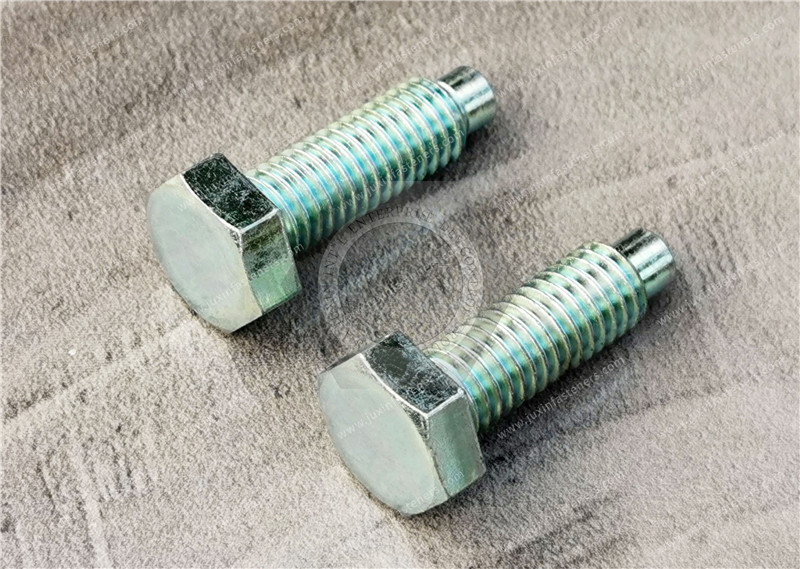

6444e1f5cd044

DIN 561 Metric Hex Head Extended-Tip Set Screws&Hexagon head set screws with small hexagon and full dog point

Material: Carbon steel, Alloy Steel, stainless steel SUS304, SUS316， Brass, Aluminum, High-Strength Steel

Standard: GB /T 5781, GB /T 5783&ISO 4017&ISO 4018&DIN 933&DIN EN ISO 4017&DIN 558&BS 4190 &EN 24018 &JIS B 1180 (ISO4017)&AS 1111.2

Inquire Now Next Products

Product Specification

Name: Metric Hex Head Extended-Tip Set Screws

Material: Carbon steel, Stainless steel SUS304, SUS316

Metric Hex Head Extended-Tip Set Screws. Turn these metric screws by hand using the hex head, or tighten them with a wrench for extra torque. With an extended tip that locks into a mating hole or slot—sometimes known as a dog point—they are often used to align and secure parts such as gears and pulley wheels. These screws are made of Class 8.8 steel, which is twice as strong as low-strength steel and can be used to fasten most machinery and equipment. All meet DIN 561B, an international standard for hex head set screw dimensions.


Size Can also be According to the Customer's requirement for manufacturing, please check the detailed specification sheet details PDF, CAD, 167-168 Page See more product details.

ProductPackaging

Packaging: The inner packaging is a plastic bag, and the outer packaging is a carton. Then the tray. Carton size: 29*19*19.5cm and 23.5*17.5*8, cm and pallet size: 215*100*90cm, or as your request.


ProductPictures

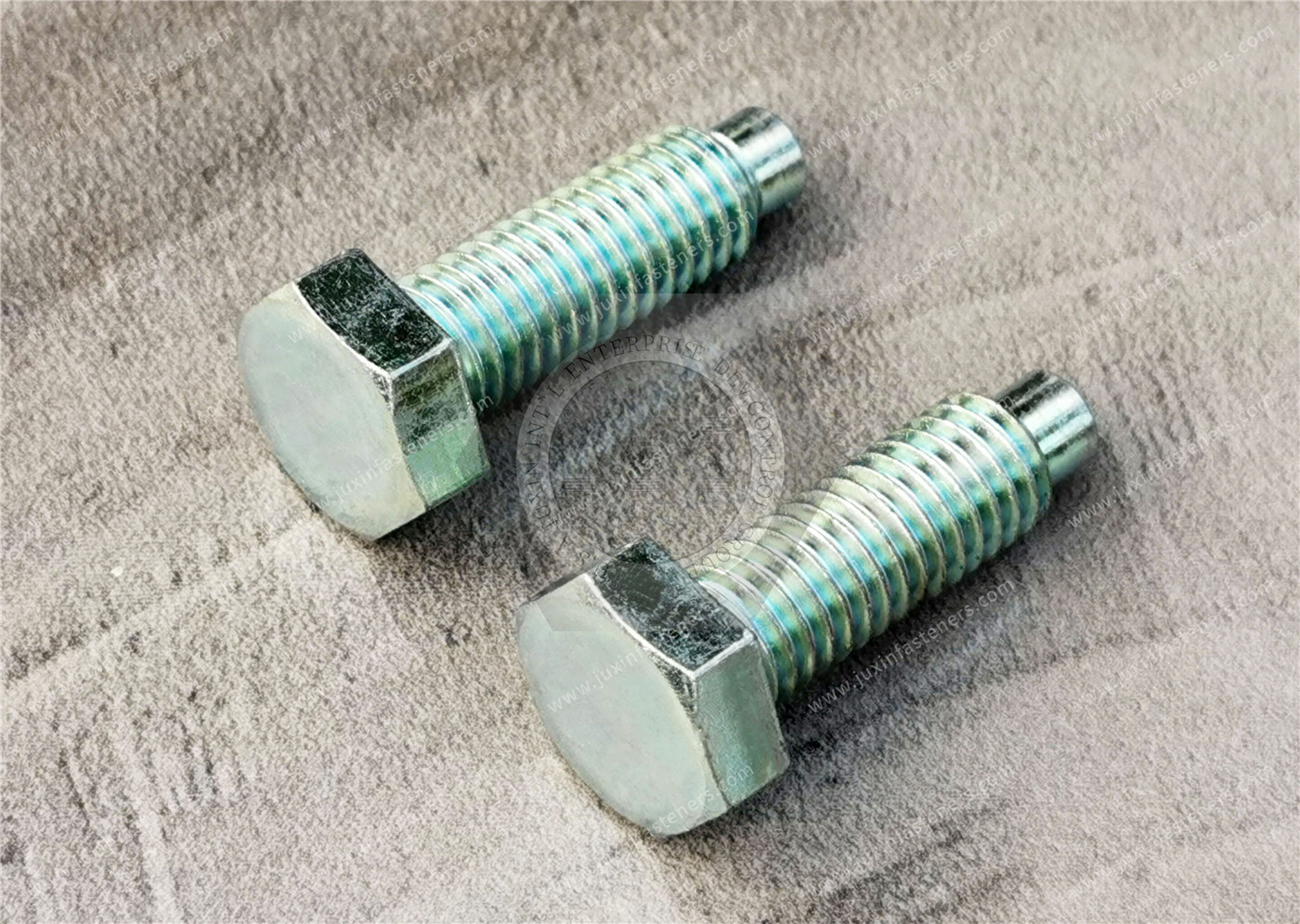

DIN 561 Metric Hex Head Extended-Tip Set Screws
