JUXIN FASTENERS
U.S.A JUXIN INT'L ENTERPRISE DEV.
Material: Carbon Steel, Stainless Steel. Brass
Product Specification

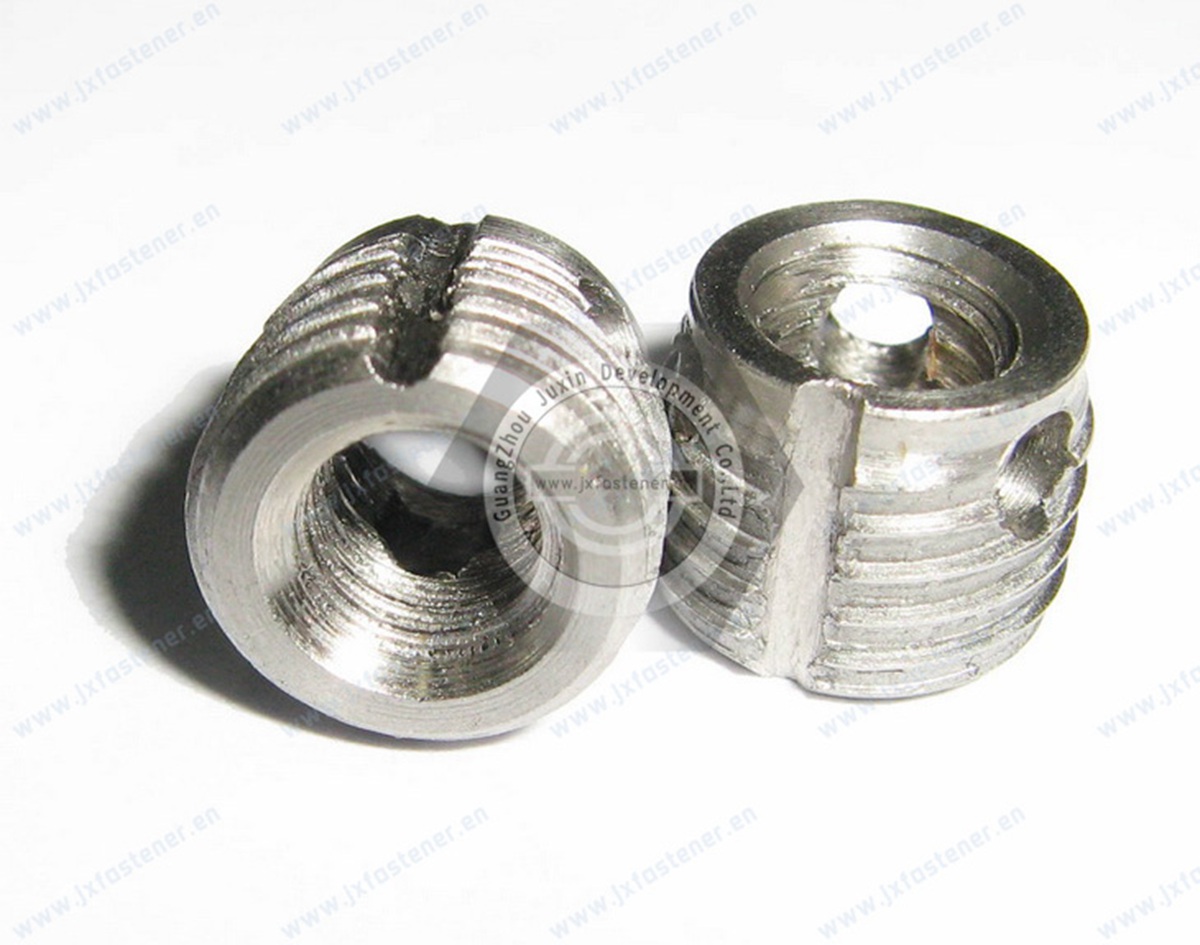

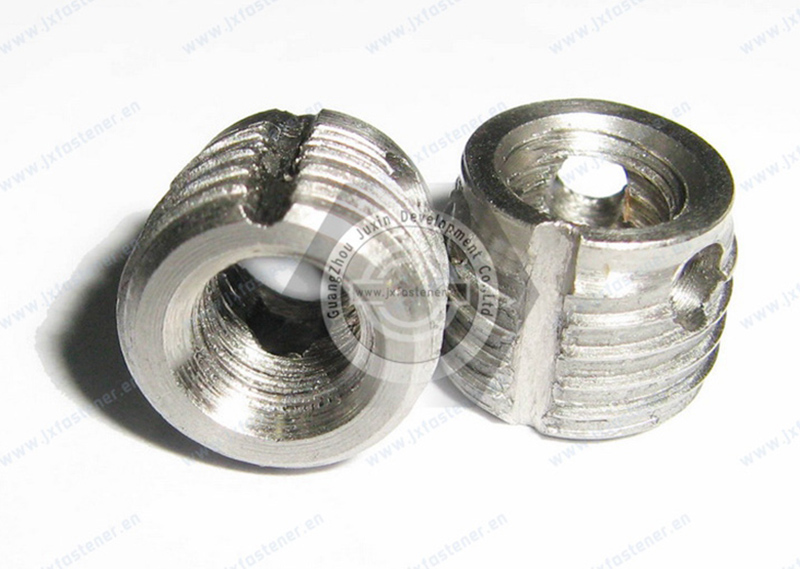

Stainless steel Tapping Inserts for Plastic, Also known as Trisert inserts, cut threads into plastic and have better holding power than press-fit inserts. Flutes channel loose chips up and out to keep threads clean during installation. Made from brass, they’re corrosion-resistant, electrically conductive, and nonmagnetic. Install in a drilled hole using a required installation tool.
1. Application: This special insert is used to absorb extreme torsional and flutter pressures. The anti-rotation function can be achieved by making a parallel groove and groove on the grooved bolt (pre-drilling a hole with a diameter of E3 and a depth of B3 + 1mm on the workpiece).
2. Material: untempered steel, surface hardened steel, galvanizing, chromium plating, brass, anti-rust material 1.4105, anti-rust materials 1.4305
Tolerance: ISO2768-m
3. Margins W: light alloy ≥0.2-0.6E; cast-iron ≥0.3-0.5E

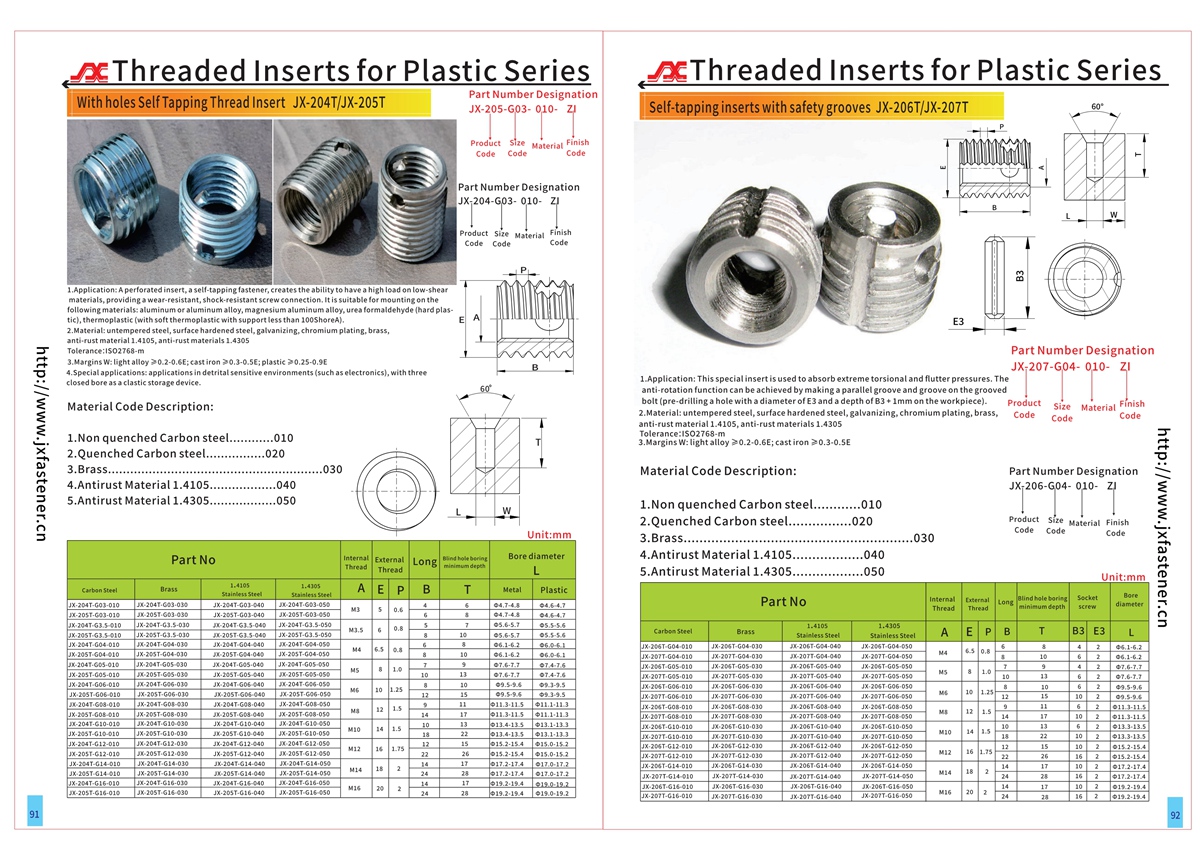

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 91-92Page See more product details.
ProductPackaging
The inner packaging is a plastic bag, and the outer packaging is a carton. Then the tray. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size: 215*100*90CM, or as your request
ProductPictures
Related Products
Steel Flat Head Open-End Round Body Blind Rivet Nut
Material: Steel
Surface Finish: RoHS Blue-White Zinc / RoHS Blue Zinc
Grip Range: 0.5–6.0 mm
Steel Flat Head Open-End Round Body Blind Rivet Nut
Flat Head Open-End Round Body Plain Blind Rivet Nut
High-quality steel blind rivet nut with a flat head, suitable for versatile industrial applications.
Size: M3, M4, M5, M6, M8, M10, M12, #6-32, #8-32, 3/16", 1/4-20, 5/16-18, 3/8-16, 1/2-13
Material: Steel
Surface Finish: Color Zinc
Grip Range: 0.5–6.0 mm
