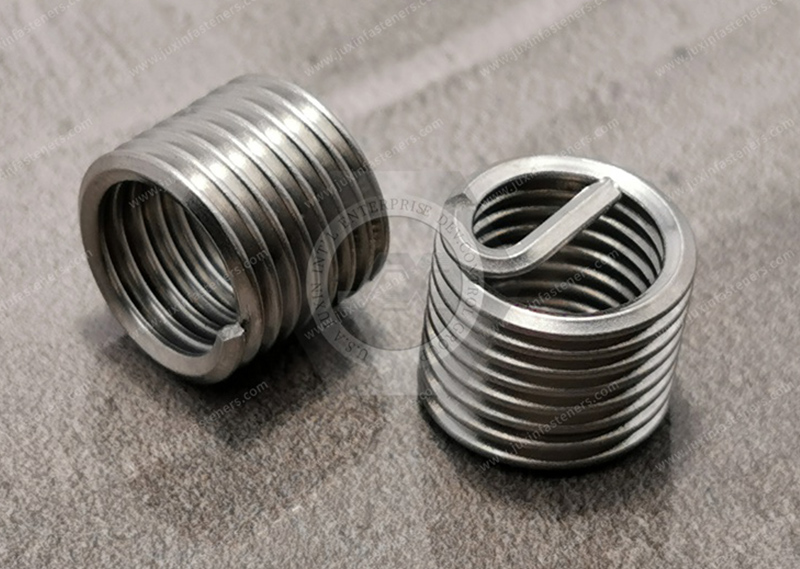

Also known as Heli-Coil inserts, these inserts have coils that expand once installed to securely anchor the insert. All have a prong for ease of installation. An installation tool grips the prong and reduces the coil diameter, enabling the insert to fit in tapped holes. Remove the prong to insert the screw. Installation requires a drill bit, a helical insert tap, an installation tool, and a prong break-off tool.
Inserts that meet DIN 8140 adhere to international standards for dimensions.Lubricated Stainless Steel Helical Inserts without Prong.A dry film keeps the screw from sticking or binding in these inserts during installation. Without a prong to break off and retrieve, they are often used where debris could cause damage. Also known as Heli-Coil inserts, they have coils that expand once installed to securely anchor the insert. Installation requires a drill bit, a helical insert tap, and an installation tool.

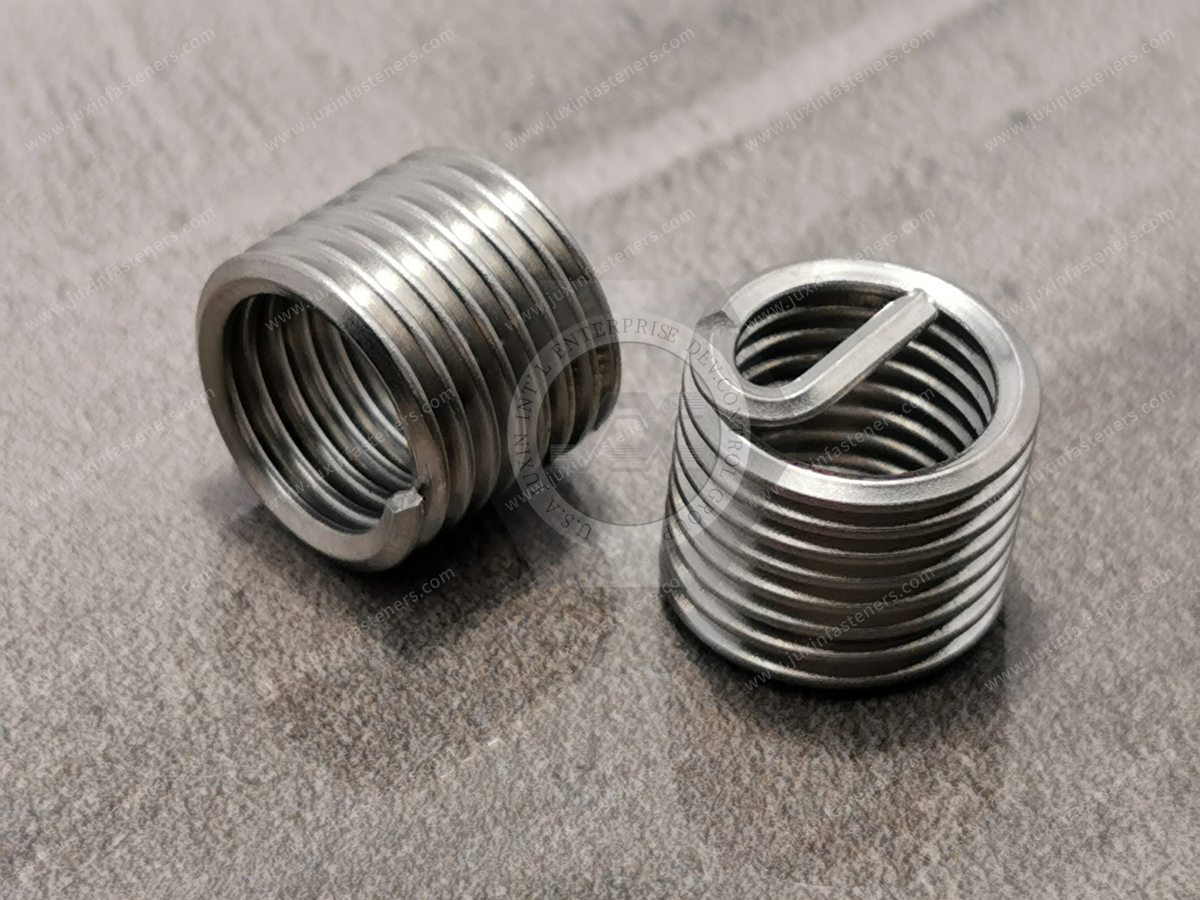

1. Stainless Steel Helical Inserts for Particle-Free Environments.
Made of Nitronic 60 stainless steel, these inserts prevent the screw from binding or sticking without any coating or lubricant that could contaminate particle-free environments. Also known as Heli-Coil inserts, they have coils that expand once installed to securely anchor the insert. All have a prong for ease of installation. An installation tool grips the prong and reduces the coil diameter, enabling the insert to fit in tapped holes. Remove the prong to insert the screw. Installation requires a drill bit, a helical insert tap, an installation tool, and a prong break-off tool.
2. Lubricated Stainless Steel Helical Inserts. A dry film keeps the screw from sticking or binding in these inserts during installation. Also known as Heli-Coil inserts, they have coils that expand once installed to securely anchor the insert. All have a prong for ease of installation. An installation tool grips the prong and reduces the coil diameter, enabling the insert to fit in tapped holes. Remove the prong to insert the screw. Installation requires a drill bit, a helical insert tap, an installation tool, and a prong break-off tool.
Inserts that meet DIN 8140 adhere to international standards for dimensions
Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 99-100Page See more product details.
