Material: Steel or 1.4305 stainless steel, Carbon steel.Brass
Version: Steel case hardened, electro-zinc-plated.Stainless steel bright.

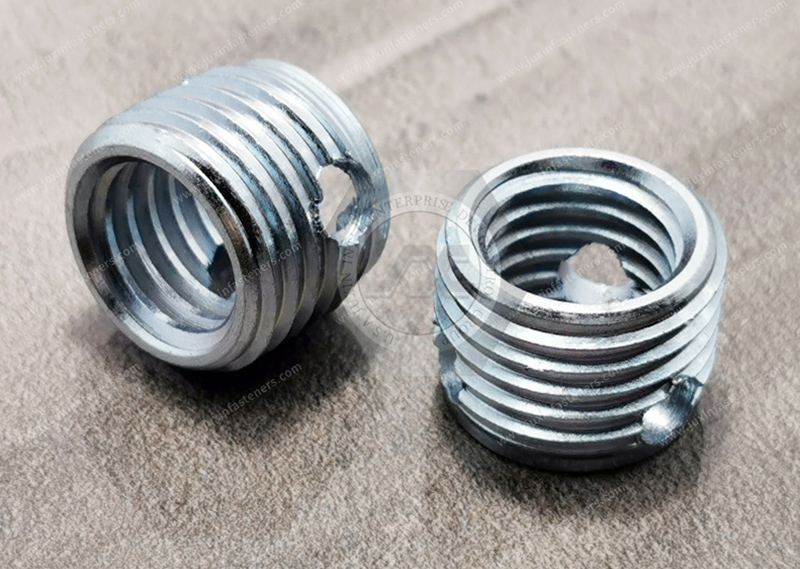

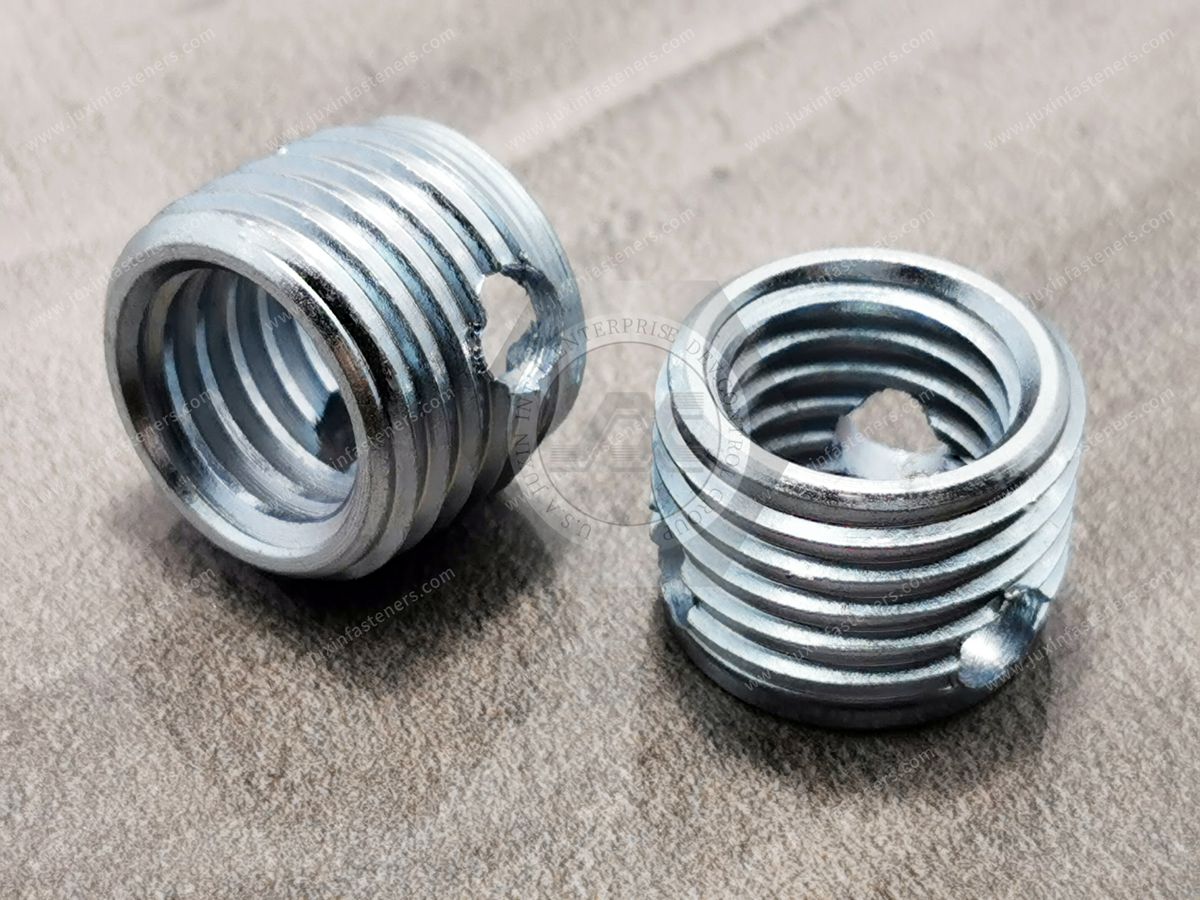

Note: self-tapping threaded inserts for making high-strength, wear-free, vibration-resistant screw connections in materials with low shear strength such as aluminum and aluminum alloys, brass, bronze, cast iron, duro, and thermoplastics. The threaded inserts are tapered at the bottom and have three cutting bores. They cut their threads inside a receiver hole. This guarantees a completely secure and firm anchoring in the host material. Internal thread D1 acc. to ISO 6H.
The threaded inserts with cutting bores are designed especially for materials difficult to machine. Due to the thicker wall, it can withstand greater force during cutting, which is also distributed over three cutting bores.
1. Application: A perforated insert, a self-tapping fastener, creates the ability to have a high load on low-shear materials, providing a wear-resistant, shock-resistant screw connection. It is suitable for mounting on the
following materials: aluminum or aluminum alloy, magnesium-aluminum alloy, urea-formaldehyde (hard plas-tic), thermoplastic (with soft thermoplastic with support less than 100ShoreA).
2. Material: untempered steel, surface hardened steel, galvanizing, chromium plating, brass, anti-rust material 1.4105, anti-rust materials 1.4305
Tolerance: ISO2768-m
3. Margins W: light alloy ≥0.2-0.6E; cast-iron ≥0.3-0.5E; plastic ≥0.25-0.9E
4. Special applications: applications in detrital sensitive environments (such as electronics), with three closed bores as a clastic storage device.

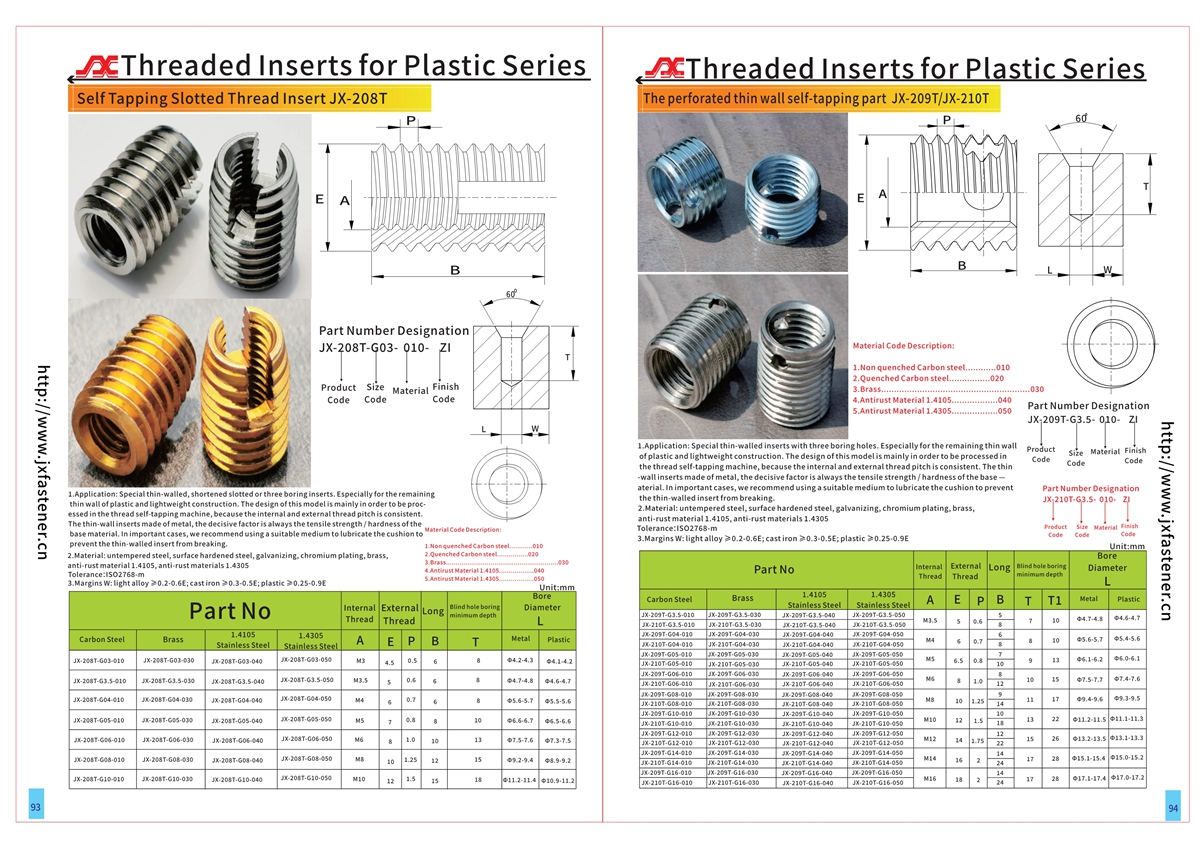

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 91-92, 93-94Page See more product details.
