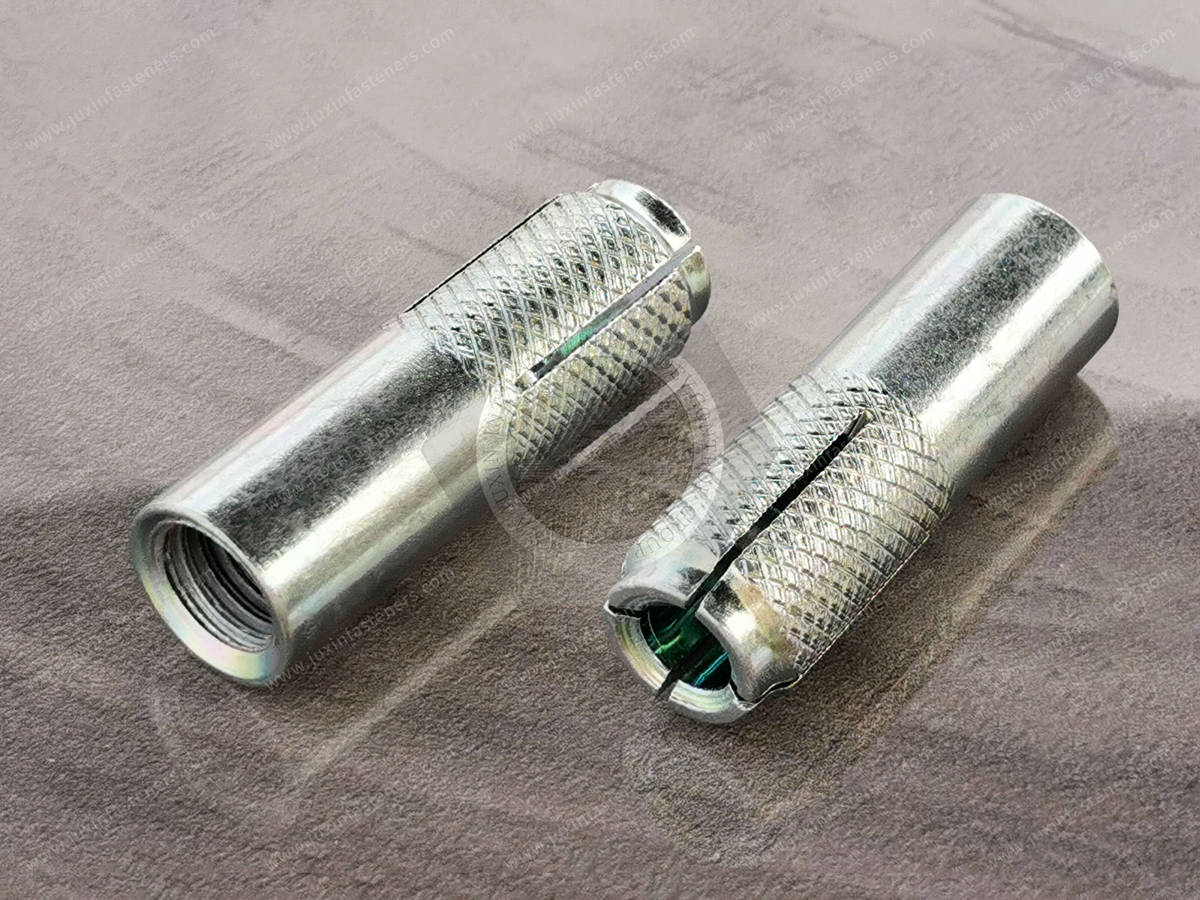

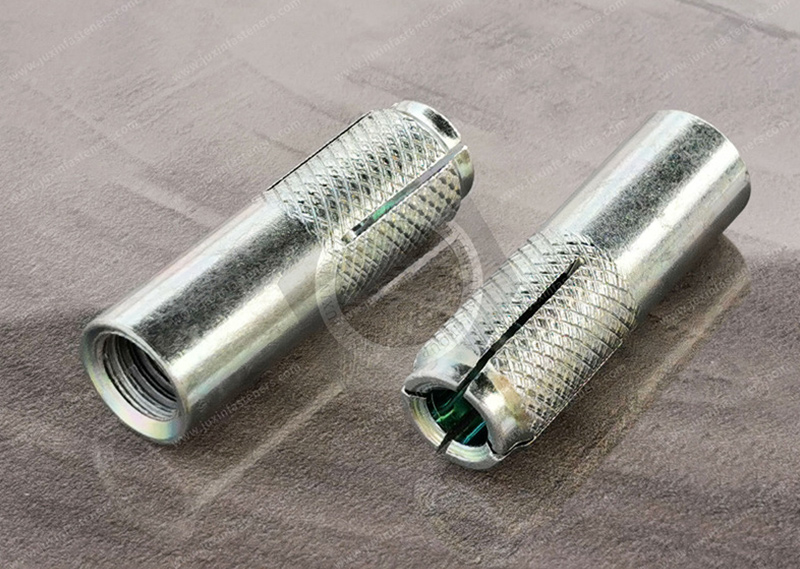

Steel Female-Threaded Anchors for Concrete.
Zinc plating provides corrosion resistance in wet environments. Also known as drop-in anchors, these are often used for overhead applications because the anchor's internal plug expands in four directions to hold the anchor firmly inside the hole before inserting a threaded rod or bolt. To install, place the anchor into the hole, insert the required installation tool (sold separately) into the anchor, and drive with a hammer until the thicker portion of the tool makes contact with the anchor. Pull-out strength and shear strength values are 25% of the ultimate values for normal-weight concrete.
Anchors can be installed below the base of the surface as well as flush with the surface. Use those with a coil thread to support temporary concrete formwork. Their threads are shallow and widely spaced for quick threading with a compatible rod or bolt.
Flanged anchors are easy to set in holes that are longer than the anchor. They sit flush with the surface when installed.
18-8 Stainless Steel Female-Threaded Anchors for Concrete.
These 18-8 stainless steel anchors have good chemical resistance and may be mildly magnetic. Also known as drop-in anchors, they're often used for overhead applications because the anchor's internal plug expands in four directions to hold the anchor firmly inside the hole before inserting a threaded rod or bolt. To install, place the anchor into the hole, insert the required installation tool (sold separately) into the anchor, and drive with a hammer until the thicker portion of the tool makes contact with the anchor. When installed, anchors sit flush with the surface. Pull-out strength and shear strength values are 25% of the ultimate values.
