Captive Panel Screw, Screw Head, Spring-loaded, Flare Mount - Metric

Home - Products - Self-Clinching Fasteners for Sheet Metal - Captivated Screws - Captive Panel Screw, Screw Head, Spring-loaded, Flare Mount - Metric
681f641238045

Captive Panel Screw, Screw Head, Spring-loaded, Flare Mount - Metric

Material:

Steel: C45(K1045), C46(K1046), C20, etc.

Iron: 1213, 1214, 1215, etc.

Inquire Now Next Products

Product Specification

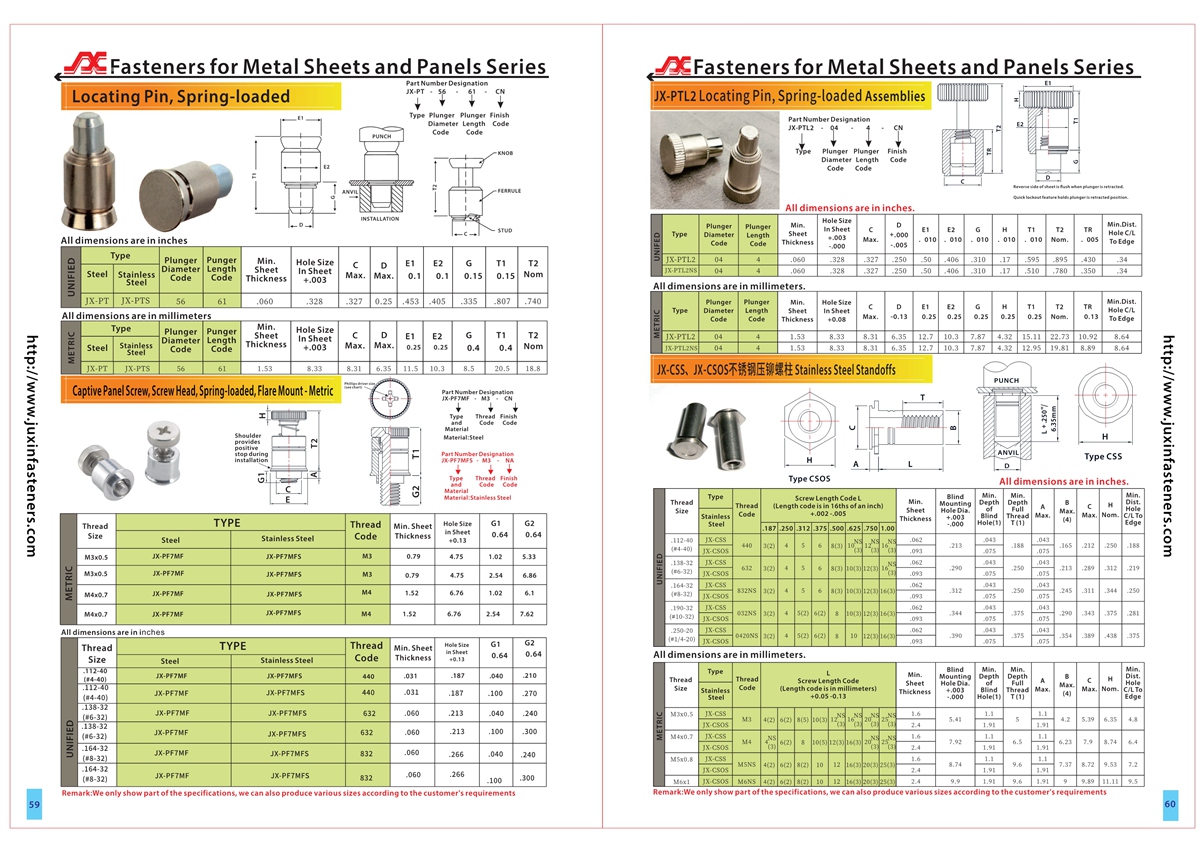

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 59-60Page See more product details.


Used as a retractable drawer-guide stop, indexing pins and latch detents, Can be locked in the retracted position, Plunger diameter .250"/6.4mm.The reverse side of the sheet is flush when the plunger is retracted.


The quick lockout feature holds the plunger in the retracted position.


For use in sheets of HRB 80 or less.


Available as Type JX-PSL2, JX-PTL2without lockout feature on special order.


ProductPackaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

ProductPictures

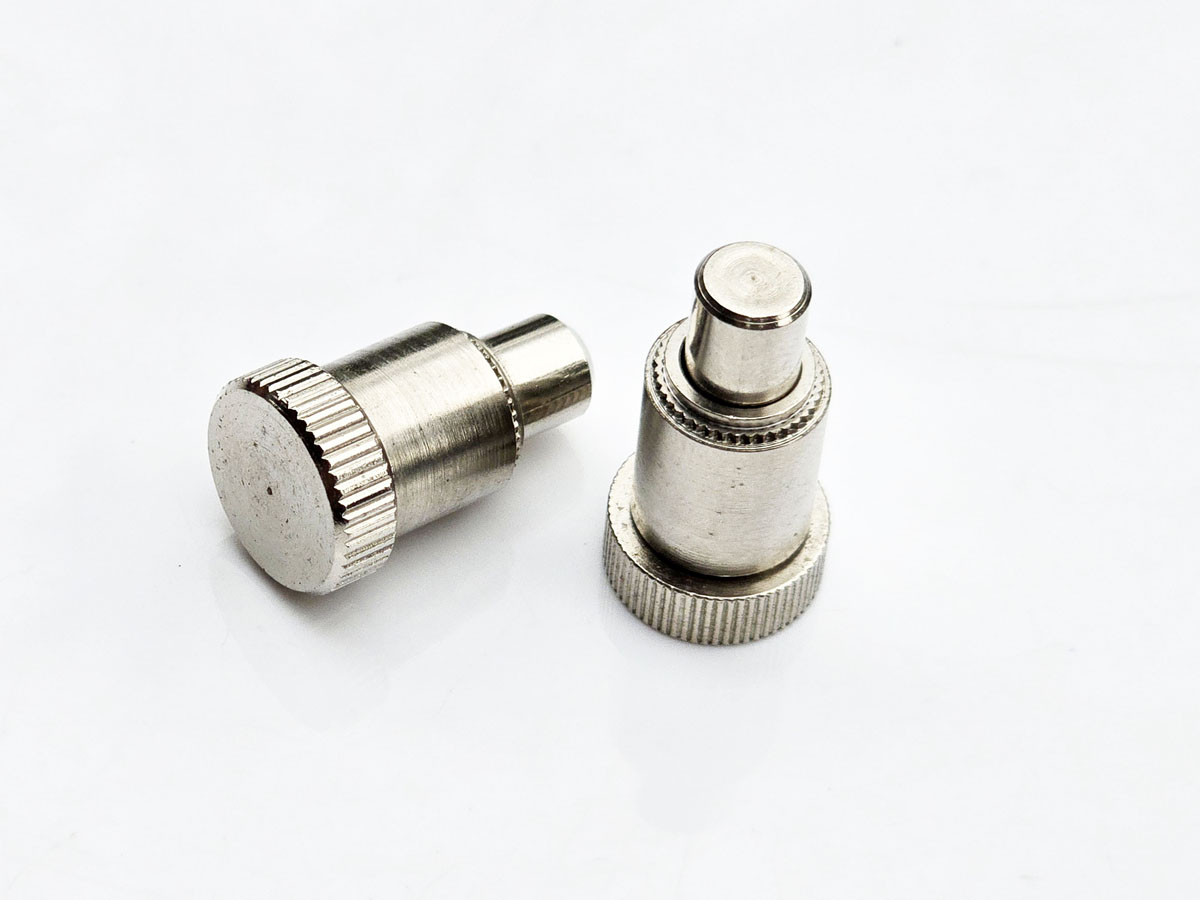

Captive Panel Screw, Screw Head, Spring-loaded, Flare Mount - Metric

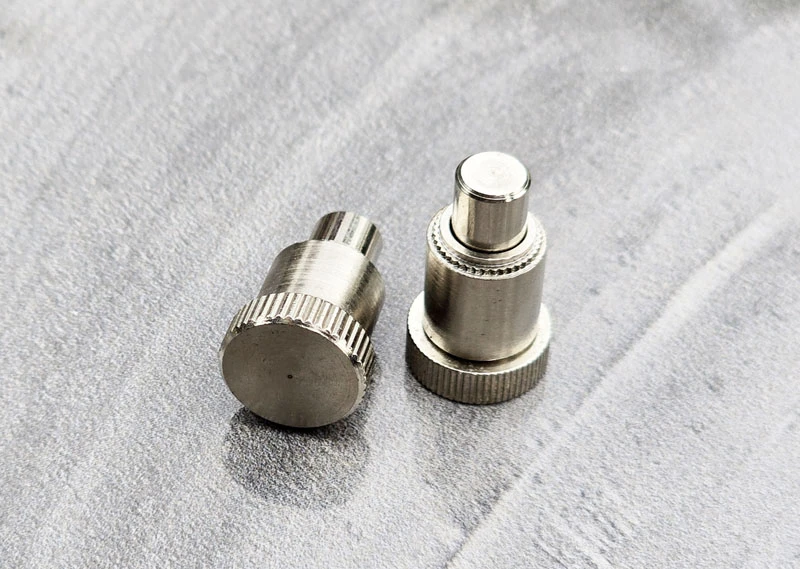

Captive Panel Screw, Screw Head, Spring-loaded, Flare Mount - Metric

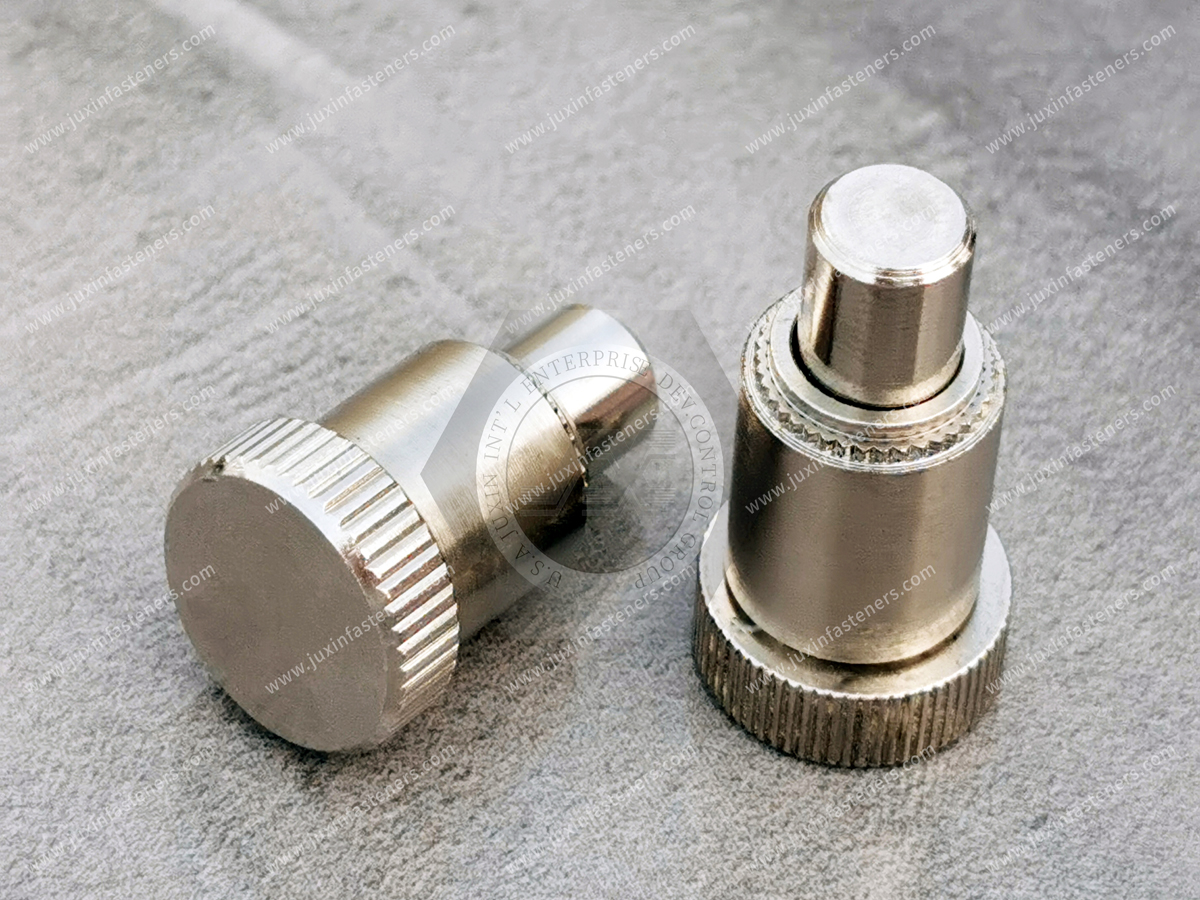

Captive Panel Screw, Screw Head, Spring-loaded, Flare Mount - Metric
