Captive Panel Screw, Screw Head, Spring-loaded, Flare Mount - Metric Type JX-PF7MF

Home - Products - Self-Clinching Fasteners for Sheet Metal - Captivated Screws - Captive Panel Screw, Screw Head, Spring-loaded, Flare Mount - Metric Type JX-PF7MF
681f6060513d9

Captive Panel Screw, Screw Head, Spring-loaded, Flare Mount - Metric Type JX-PF7MF

Material:

Steel: C45(K1045), C46(K1046), C20, etc.

Iron: 1213, 1214, 1215, etc.

Or Stainless Steel: SUS302, SUS303, SUS316, SUS410, SUS420, SUS430, etc.

Captive Panel Screw, Screw Head, Spring-loaded, Flare Mount – Type JX-PF7MF

Appropriate for close centerline-to-edge applications.

Does not require a high installation force.

Installs into any panel hardness.

Installs flush on the back side of the panel.

Automotive panel fasteners connect two or more objects to fasten the parts. In daily life or industrial production, they have played a vital role. Fasteners of the model specifications are very diverse, the performance of the use of very different, and standard fasteners are bolts, screws, studs, nuts, and spacers; the need for outstanding quality fasteners is very much recommended by the U-Button fasteners, rest assured that the choice.

Inquire Now Next Products

Product Specification

Size can also be according to the customer's requirement. Please check the detailed specification sheet details: PDF, CAD, 59-60Page. See more product details.

The self-clinching mounting design provides high pushout resistance.

Installs flush on the backside of the panel.

Does not require special hole preparation.

Captive Panel Screw, Screw Head, Spring-loaded, Flare Mount - Metric Type JX-PF7MF

ProductPackaging

E. Packing: Inner is Poly foam, out is carton. Then pallet. Carton size: 29*19*19.5CM and 23.5*17.5*8, CM and pallet size is: 215*100*90CM, or as your requirement.

ProductPictures

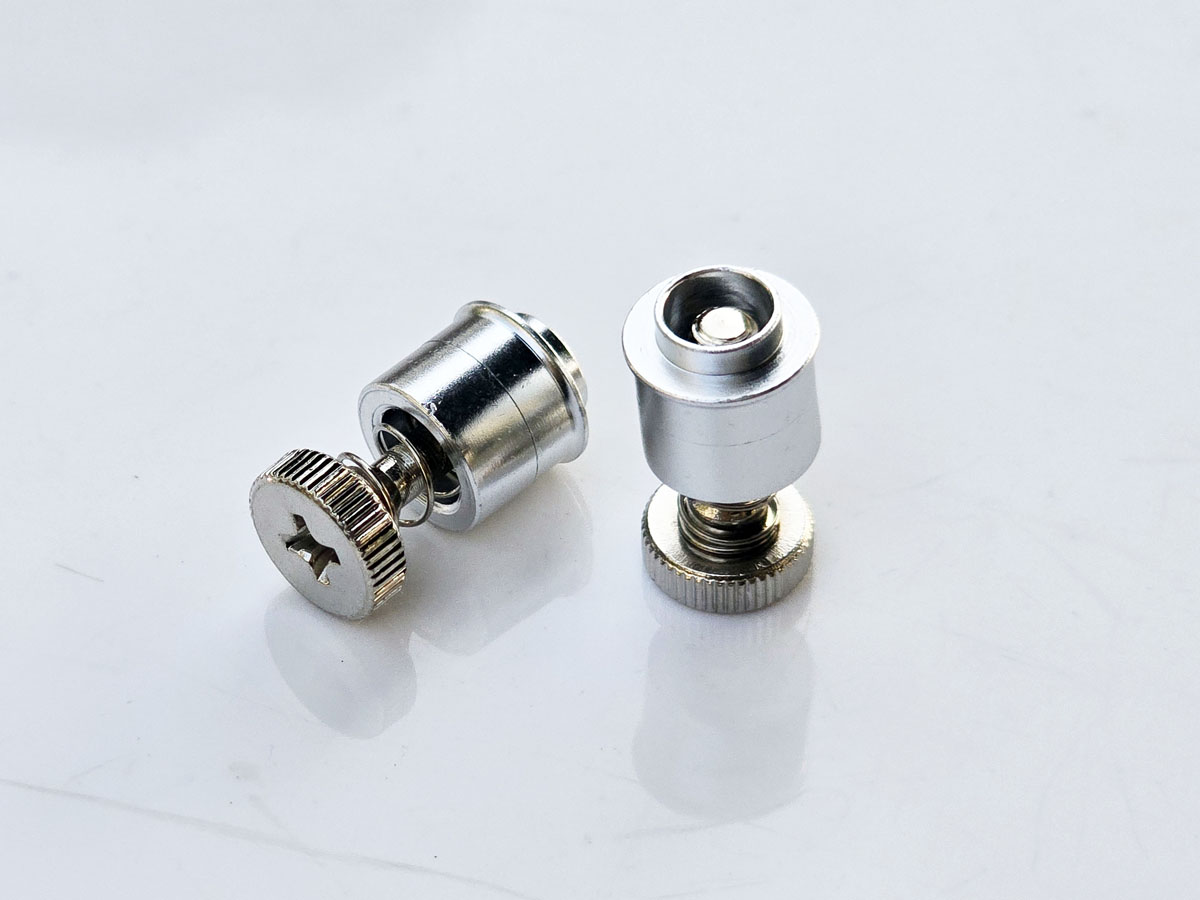

Captive Panel Screw, Screw Head, Spring-loaded, Flare Mount - Metric Type JX-PF7MF

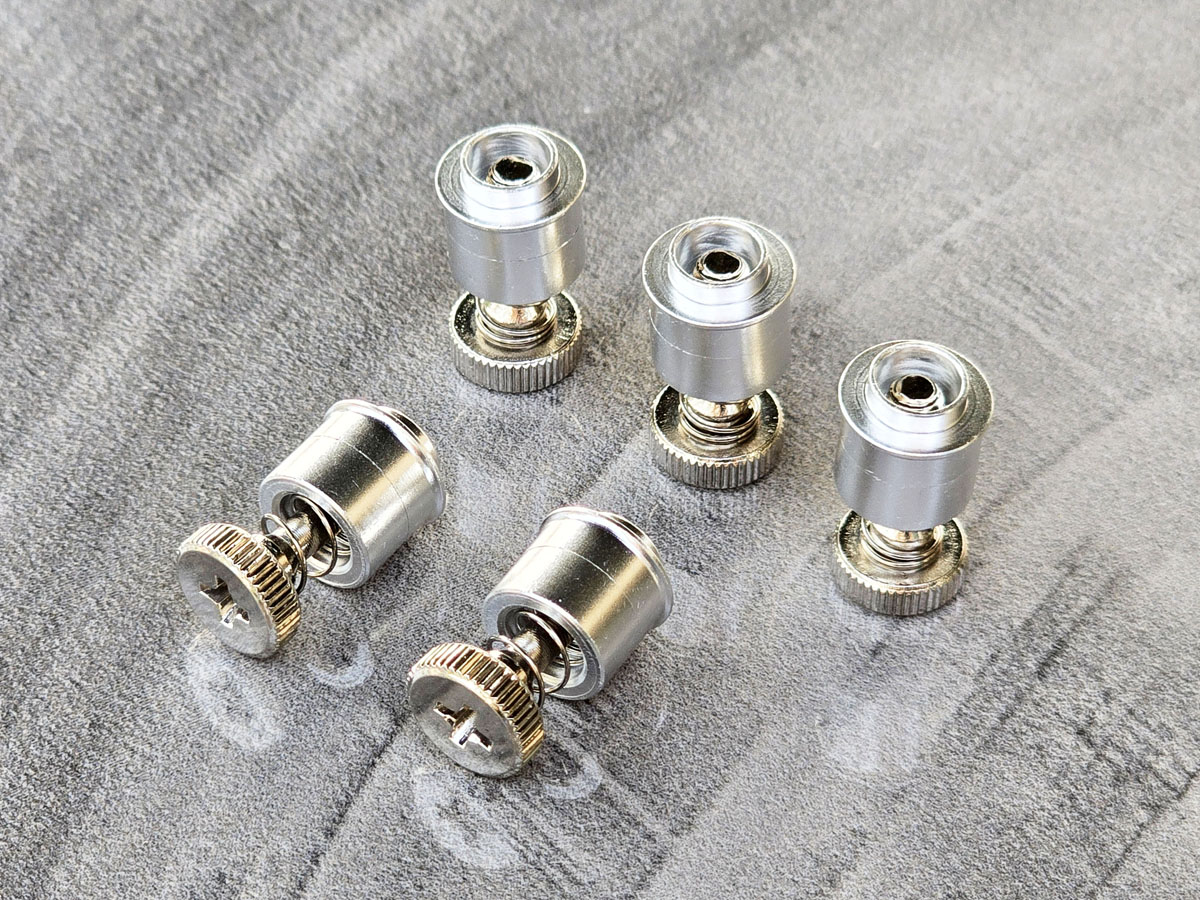

Captive Panel Screw, Screw Head, Spring-loaded, Flare Mount - Metric Type JX-PF7MF

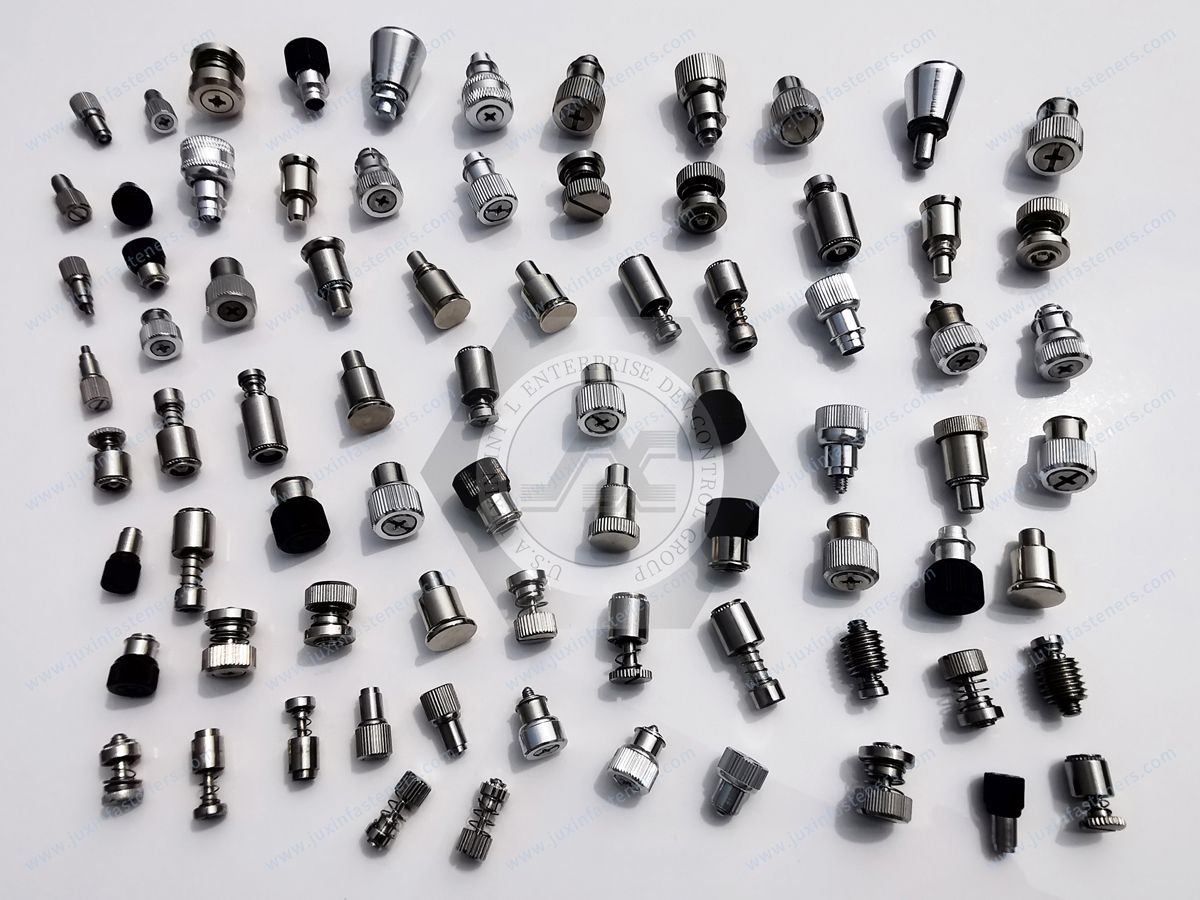

Captive Panel Screw, Screw Head, Spring-loaded, Flare Mount - Metric Type JX-PF7MF
