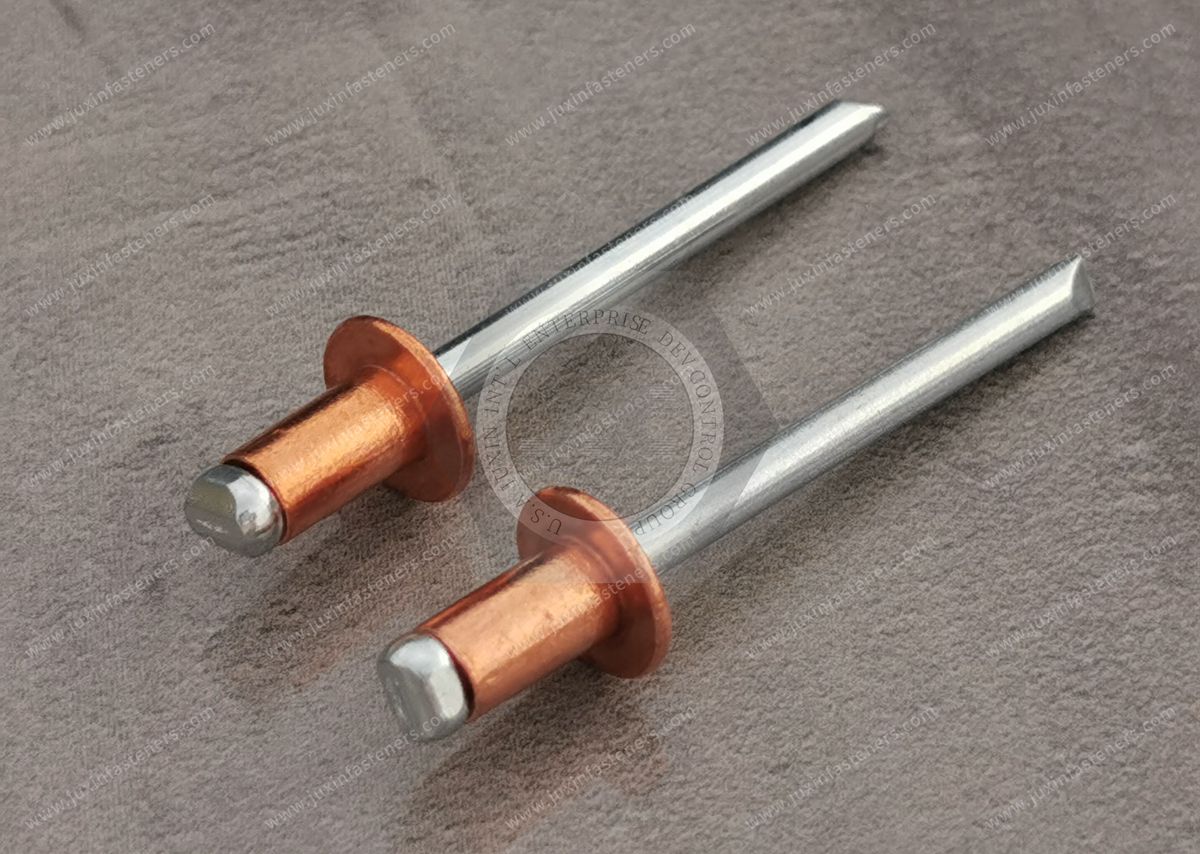

Material: Copper Body+Steel Mandrel Domed Head Open End
A copper spigot also known as a core spigot is a type of single-sided riveting spigot but must use special tools - a spigot gun (manual, electric, steam) for riveting. This type of spigot is especially suitable for the inconvenience of using ordinary spigots (must be riveted from both sides) riveting occasions, so widely used in construction, automobiles, ships, aircraft, machinery, electrical appliances, furniture, and other products. The open type flat round head spigot is the most widely used, countersunk head spigot is suitable for the performance of the need for smooth riveting occasions, closed type spigot is suitable for the requirements of the higher load and has a certain sealing performance of riveting occasions. Copper rivets are electrically conductive, nonmagnetic, and have good corrosion resistance. They join material when you only have access to one side. The low-profile domed head creates a finished appearance. The combined thickness of the material must fall within the rivet's material thickness range. Shear strength is the force it takes to break a rivet from the side, and tensile strength is the pull a rivet can withstand without breaking. Joint strength is also affected by rivet spacing and hole size. A blind rivet tool (sold separately) with a nosepiece that matches the rivet's diameter is required for installation.

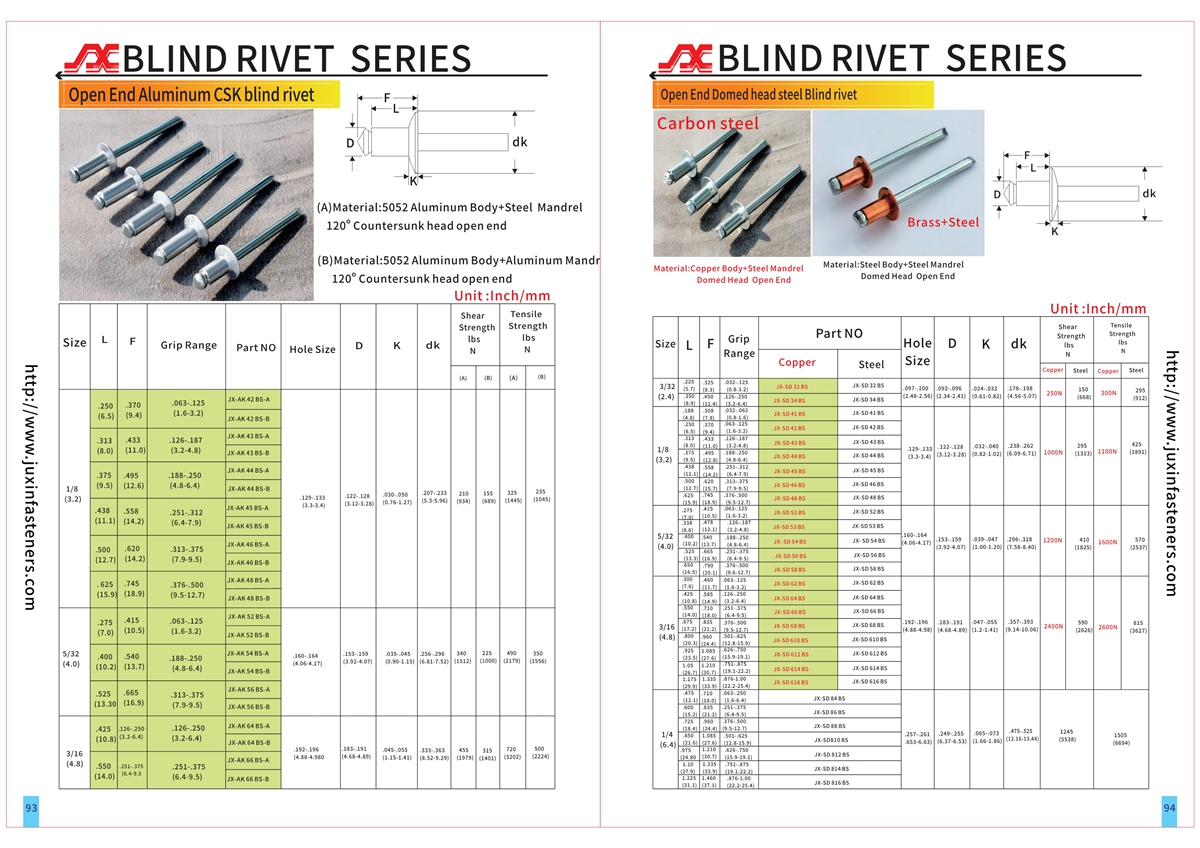

Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 93-94Page See more product details.
