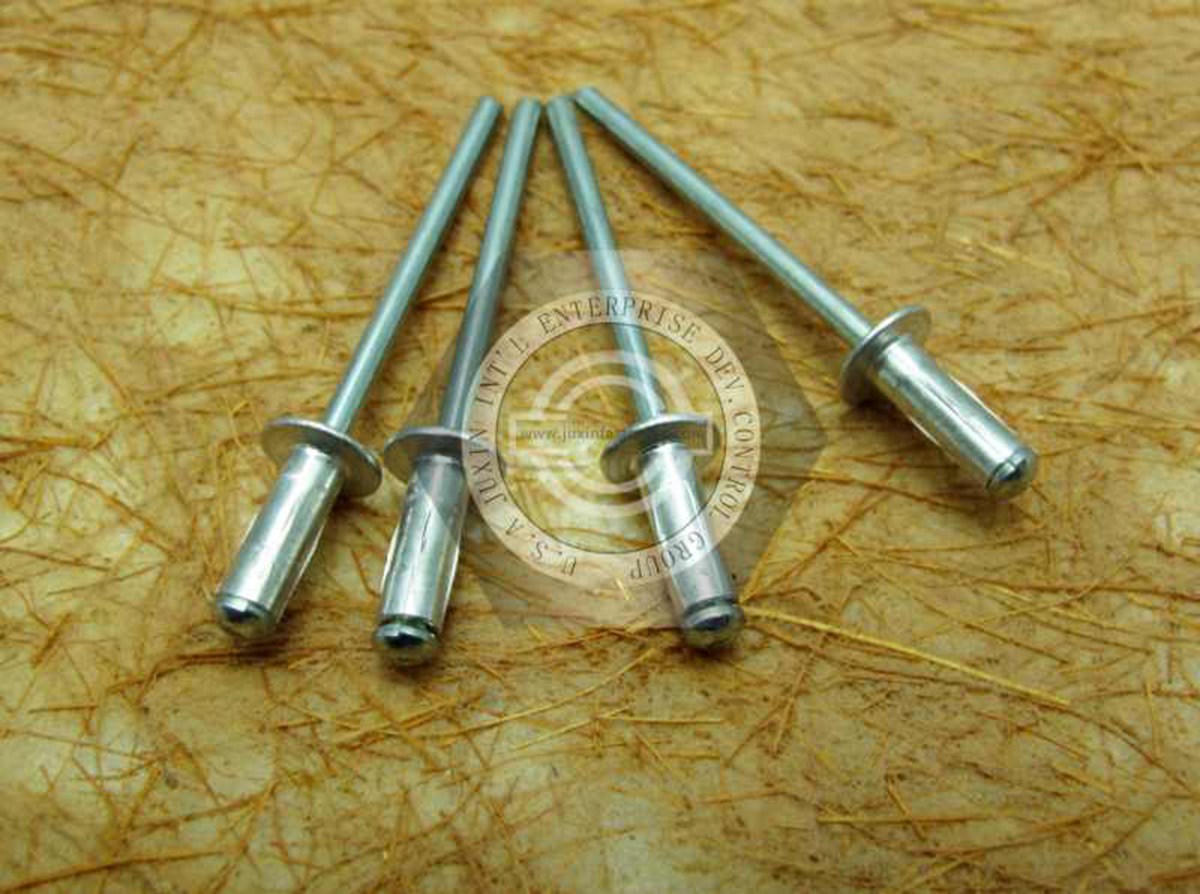

Multi-Grip blind rivet

Material:

1. Aluminum Body+Aluminum Mandrel

2. Aluminum Body+Steel Mandrel

Inquire Now Next Products

Product Specification

P/N: AD X-X ABS

Material: Aluminum Body+Aluminum Mandrel

Domed Head Multi Grip

P/N: JX-AD X-X BS

Material: Aluminum Body+Steel Mandrel

Domed Head Multi Grip

Name: Aluminum Wide-Thickness-Range Domed Head Blind Rivets


Lightweight and nonmagnetic, these rivets have good corrosion resistance. They grip a much wider range of material thicknesses than standard blind rivets. Use to join material when you only have access to one side. The low-profile domed head creates a finished appearance.The combined thickness of material must fall within the rivet's material thickness range. Shear strength is the amount of force it takes to break a rivet from the side, and tensile strength is the amount of pull a rivet can withstand without breaking. Joint strength is also affected by rivet spacing and hole size.Rivets with aluminum mandrels have greater corrosion resistance than rivets with steel mandrels.A blind rivet tool (sold separately) with a nosepiece that matches the rivet's diameter is required for installation


Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 95-96Page See more product details.
