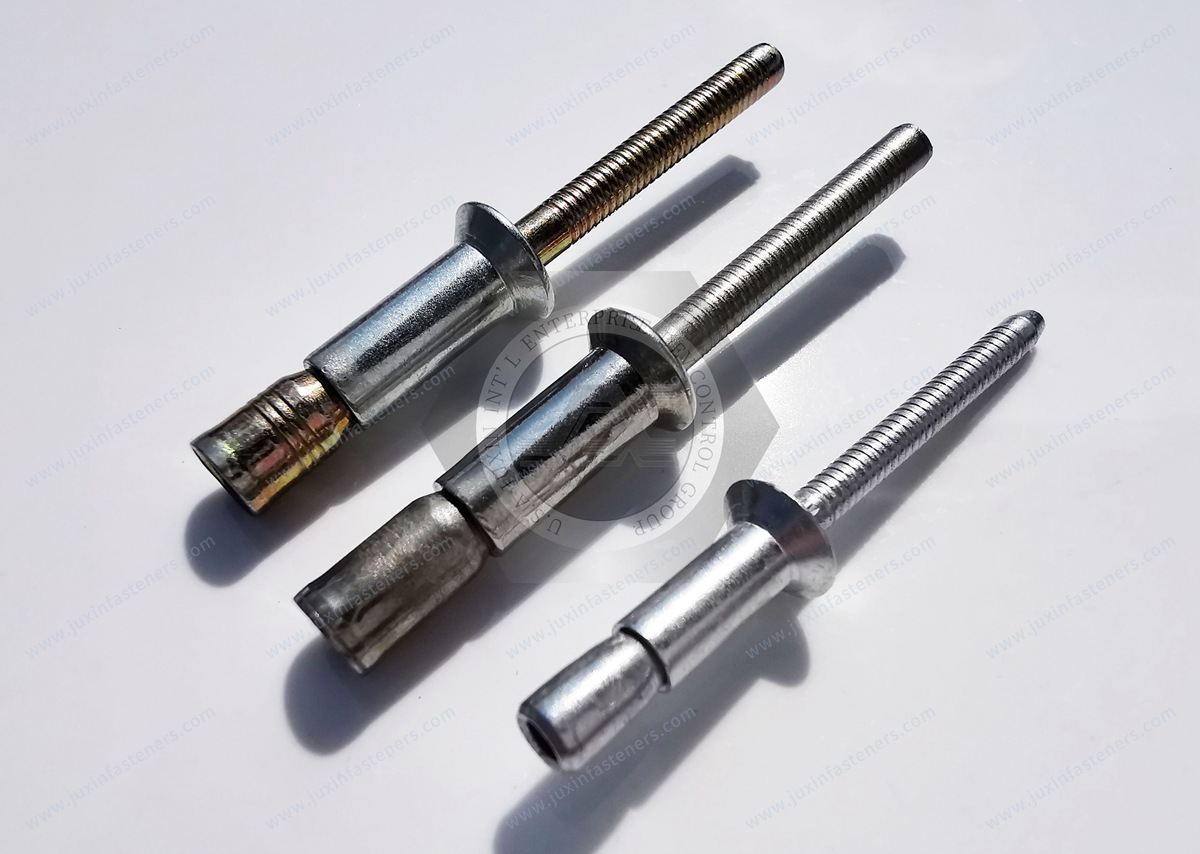

Name: Mono-Anlock Countersunk Head Type Rivets
(1) Material: Aluminum Body+Aluminum Mandrel Countersunk Head
(2) Material: Steel Body+Steel Mandrel Countersunk Head
(3) Material: Stainless Steel Body+Stainless Steel Mandrel Countersunk Head
These rivets can grip a wider range of material thicknesses than standard high-strength rivets. Install in countersunk holes and the angled head sits flush with the material's surface. The mandrel expands the rivet body to completely fill the hole, providing the highest shear and tensile strengths of all the blind rivets we offer. The portion of the mandrel that's retained inside the rivet after installation won't loosen over time and fall out. Use blind rivets to fasten material when you only have access to one side. A low-profile domed head creates a finished appearance.The combined thickness of material must fall within the rivet's material thickness range. Shear strength is the amount of force it takes to break a rivet from the side, and tensile strength is the amount of pull a rivet can withstand without breaking. Joint strength is also affected by rivet spacing and hole size.
Structural blind rivets offer a broad grip range for versatility and are designed for high strength and excellent clamp force. Structural rivets also include a mechanical lock feature that ensures 100% mandrel retention, and the mandrel fills the rivet for enhanced shear strength.
Juxin Enterprise fasteners Rivet carries a full line of structural blind rivets. An array of diameters, grip ranges, head styles, and material options are available to meet your fastening requirements. See individual product listings for additional information and specifications. Size Can also be According to the Customer's requirement and please check the detailed specification sheet details PDF, CAD, 111-112 Page See more product details.
